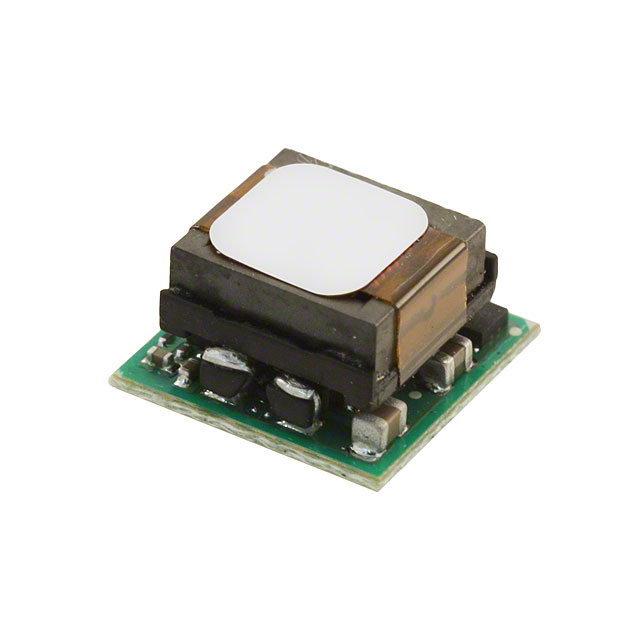

PDT006A0X3-SRZ

PDT006A0X3-SRZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.5-5.5V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PDT006A0X3-SRZ

• Description：DC DC CONVERTER 0.5-5.5V
• Series：PicoDLynx™
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module, Digital
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：0.5 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Digital with Remote On/Off and UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93.80%
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PDT006A0X3-SRZ
