PDX04BFLFPN

Overview

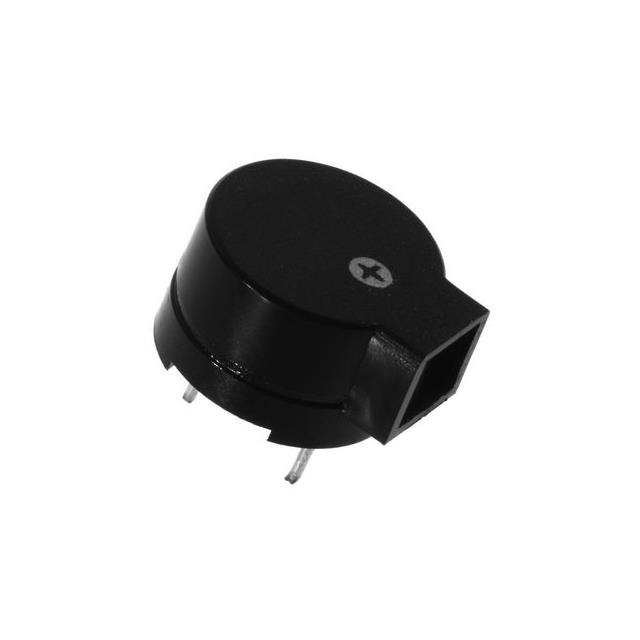

The PDX04BFLFPN is an externally driven magnetic transducer manufactured by DB Products. It operates at a nominal voltage of 1.5 V with a current consumption of 70 mA. The device produces a sound pressure level of 85 dB measured at 1.5 V and 10 cm distance. Its operating frequency is 2.731 kHz. The component utilizes through-hole PC pins for mounting, facilitating integration into printed circuit boards.

Feature Summary

• Externally driven magnetic transducer design
• Through-hole PC pin mounting configuration

Applications

• Alarm systems
• Audible indicators in electronic devices
• Siren applications

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required voltage and acoustic specifications. Confirm that the through-hole package matches the target PCB footprint. Ensure the external drive circuit can supply the specified 70 mA current at 1.5 V. Check datasheet revisions for any updates to mechanical dimensions or electrical tolerances before finalizing procurement.

Selection Notes

Select this component when an externally driven magnetic buzzer is required for audible signaling. Consider the 1.5 V operating voltage and 70 mA current draw against available power supplies. Evaluate the 85 dB sound pressure level suitability for the intended environment. Verify that the 2.731 kHz frequency provides adequate audibility for the application requirements.

Part Context

DB Products specializes in acoustic components, including buzzers and piezo elements. The PDX04BFLFPN belongs to their range of externally driven magnetic transducers designed for reliable audible output. These components are commonly used in industrial and consumer electronics where clear acoustic signals are necessary.

Replacement Considerations

Consult official DB Products documentation for direct cross-references. Ensure replacement parts match the 1.5 V rating, 70 mA current, and 2.731 kHz frequency. Verify identical through-hole pin configurations for mechanical compatibility.
