PE1WAN430-10NF

Antennas RF Overview

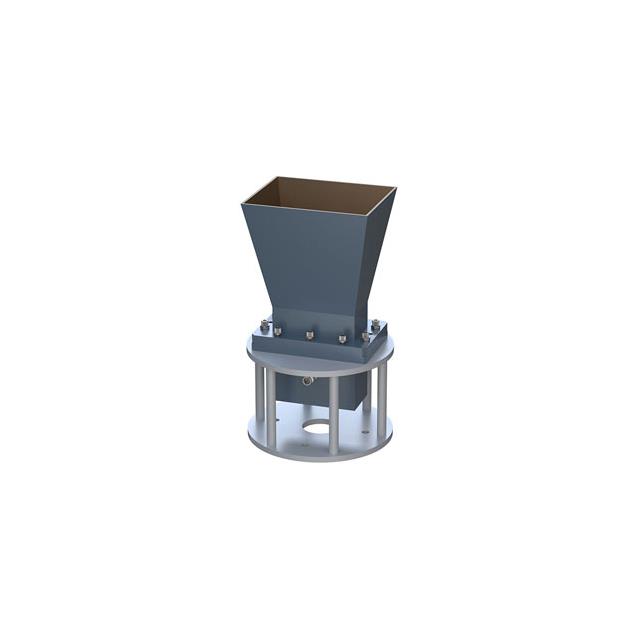

The PE1WAN430-10NF is a WR-430 standard gain horn antenna manufactured by Pasternack. It features an N Female connector interface and provides a typical gain of 10 dBi. The vertical beam width is typically 51.6 degrees. This component is designed for waveguide applications within the WR-430 frequency band.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-430 waveguide systems
• N Female connector interface for straightforward integration
• Typical 10 dBi gain performance for signal transmission

Antennas RF Applications

• Wireless communication link testing
• Antenna pattern measurement setups
• Radar system calibration

Antennas RF Procurement Notes

Verify the specific connector type and waveguide flange compatibility with your existing test equipment before ordering. Confirm that the operating frequency range aligns with the WR-430 specifications to ensure optimal performance in your application environment.

Antennas RF Selection Notes

Select this model when a standard gain reference is required for the WR-430 band. Ensure the N Female connector matches your cable or adapter inventory. Consider the 51.6-degree vertical beam width for spatial coverage requirements in your setup.

Antennas RF Part Context

This antenna belongs to Pasternack's line of waveguide horn antennas. It serves as a reference standard for measuring other antennas or characterizing radar systems. The WR-430 designation indicates its physical size and operational frequency range, distinguishing it from other horn sizes like WR-90 or WR-284.
