PE51OM1036

Antennas RF Overview

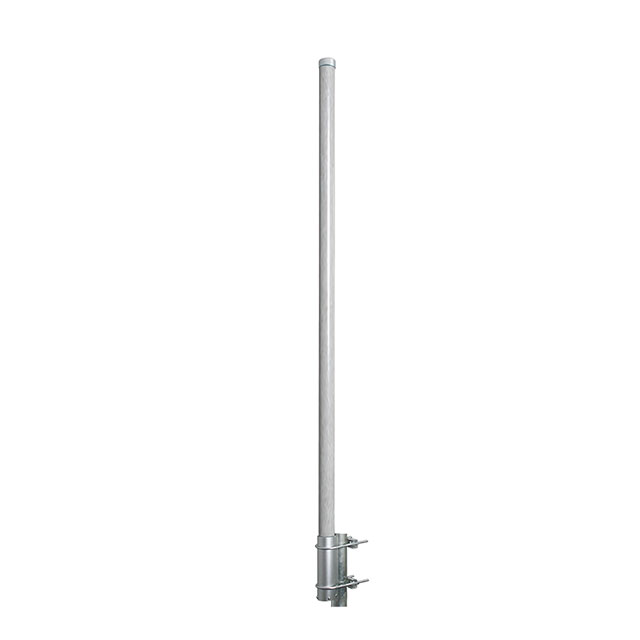

The PE51OM1036 is an omnidirectional antenna manufactured by Pasternack, designed for operation within the 698 to 960 MHz frequency range. It features a Type N female connector and provides a gain of 8 dBi. The unit supports a maximum power handling capacity of 200 Watts. Horizontal half-power beamwidth tolerance is specified at 360 degrees, while vertical half-power beamwidth tolerance is 15 degrees. The antenna incorporates a lightweight polycarbonate radome and includes heavy-duty steel mast mounting brackets for structural support.

Antennas RF Feature Summary

• All-weather operational capability with integrated heavy-duty steel mast mounting brackets
• Lightweight polycarbonate radome construction for environmental protection
• Integral Type N female connector design

Antennas RF Applications

• Wireless communication systems requiring broad coverage
• Base station installations in outdoor environments
• Industrial monitoring networks operating in the 698-960 MHz band

Antennas RF Procurement Notes

Verify that the required connector interface matches the integral Type N female specification on the PE51OM1036. Confirm that the operational frequency range aligns with the 698 to 960 MHz requirement. Ensure the mounting infrastructure can accommodate the included heavy-duty steel mast brackets. Check that the environment meets the all-weather operational standards defined for this component.

Antennas RF Selection Notes

Select the PE51OM1036 when an omnidirectional radiation pattern is necessary for the specific application. Consider the 8 dBi gain level relative to system link budget requirements. Evaluate the 200 Watt power handling capacity against peak signal levels. The inclusion of mounting hardware simplifies installation compared to antennas requiring separate bracket procurement.

Antennas RF Part Context

This component belongs to the PRO series of antennas produced by Pasternack Enterprises. The product line focuses on providing reliable RF solutions for various communication needs. The PE51OM1036 specifically addresses applications requiring wideband coverage within the lower UHF spectrum. It represents a standard offering for fixed wireless deployments.

Antennas RF Replacement Considerations

Consult the official Pasternack documentation for direct substitute part numbers within the same series. Verify compatibility of mounting interfaces if replacing with models from different manufacturers.
