PE7047-5

$226.30

Description：5 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:8b70cb550dcf Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：5 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：5dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7047-5

Overview

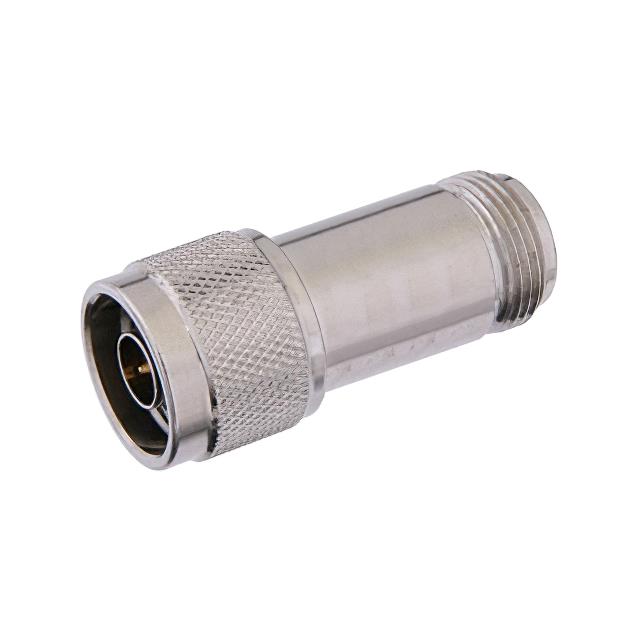

The Pasternack PE7047-5 is a fixed attenuator featuring Type N male to Type N female connectors. It provides a nominal attenuation of 5 dB with a power rating of 2 Watts and operates up to 12.4 GHz. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

Fixed attenuation value
Passivated stainless steel construction

Applications

RF signal level control
Test and measurement setups
Microwave circuit protection

Procurement Notes

Verify the specific model suffix against official Pasternack documentation to confirm connector gender, attenuation value, and frequency range. Ensure compatibility with system impedance and power requirements before procurement.

Selection Notes

Select this component when a precise 5 dB reduction is required within the 12.4 GHz limit. Consider the 2 Watt power handling capacity and the robust stainless steel housing for environmental resilience in RF applications.

Part Context

This part belongs to the Pasternack PE7047 series of fixed attenuators. These components are designed for reliable performance in microwave systems, offering consistent attenuation across their specified bandwidth with durable mechanical construction.

Replacement Considerations

PE7047-6 and PE7047-10 are similar fixed attenuators from the same series but offer different attenuation values (6 dB and 10 dB respectively) while maintaining identical connector types and frequency ratings.
