PE7087-10

Attenuators Overview

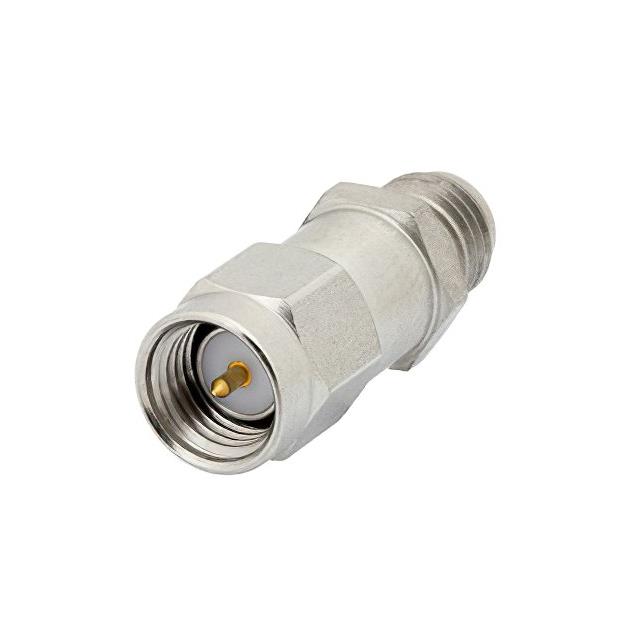

The Pasternack PE7087-10 is a fixed RF attenuator module designed for high-frequency signal management. It provides a precise attenuation value of 10 dB across a frequency range of 0 Hz to 26 GHz. The component features SMA male to SMA female connectors and is rated for a maximum power handling capacity of 2 Watts. Constructed with passivated stainless steel, it ensures durability in demanding environments.

Attenuators Feature Summary

• Provides fixed 10 dB attenuation for signal level control
• Operates effectively from DC up to 26 GHz
• Features SMA male to SMA female inline connectivity
• Rated for 2 Watts power handling capacity

Attenuators Applications

• RF test and measurement setups requiring precise signal reduction
• Microwave communication systems needing signal attenuation
• Laboratory equipment interfacing with high-frequency sources

Attenuators Procurement Notes

Verify the specific connector gender configuration (SMA Male to SMA Female) matches your system requirements. Confirm that the 2 Watt power rating is sufficient for your application's peak power levels. Ensure the operating frequency range up to 26 GHz aligns with your signal specifications before procurement.

Attenuators Selection Notes

Select this model when a fixed 10 dB loss is required without variable adjustment. Consider the SMA interface compatibility with existing cabling. Evaluate the 26 GHz upper frequency limit against your highest operational frequency. Assess the passivated stainless steel housing for environmental resistance needs.

Attenuators Part Context

This component belongs to Pasternack's line of fixed RF attenuators. It serves as a passive interconnect device used to reduce signal amplitude in microwave circuits. The design focuses on maintaining impedance stability while providing consistent attenuation across a broad bandwidth.

Attenuators Replacement Considerations
