PE7088-3

Attenuators Overview

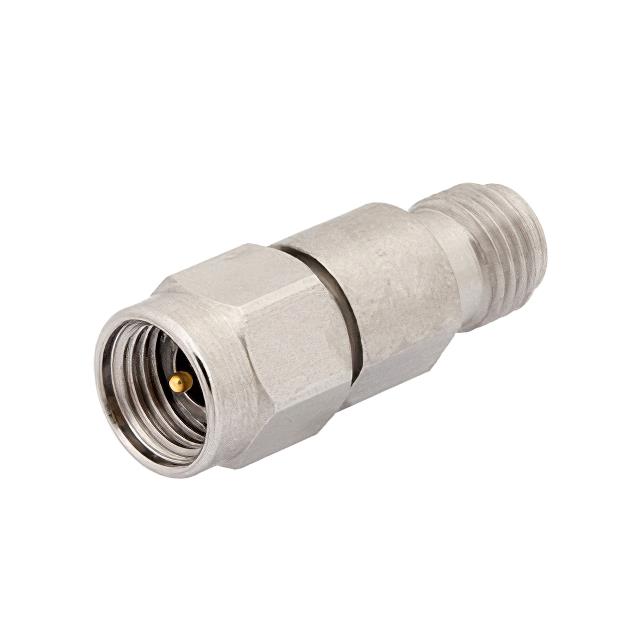

The Pasternack PE7088-3 is a fixed 3 dB RF attenuator designed for high-frequency applications. It features a 2.92mm male-to-female connector configuration with a 50 Ohm impedance rating. The component operates within a frequency range of 0 Hz to 40 GHz and supports a maximum power handling capacity of 1 Watt. Constructed with passivated connectors, this inline module provides precise signal attenuation for test and measurement environments.

Attenuators Feature Summary

• Provides fixed 3 dB signal attenuation
• Operates up to 40 GHz frequency
• Features 2.92mm male-to-female interface
• Supports 1 Watt power handling

Attenuators Applications

• High-frequency signal testing
• RF circuit calibration
• Signal level adjustment in measurement systems

Attenuators Procurement Notes

Verify the specific datasheet for the PE7088-3 model to confirm current manufacturing status and technical specifications. Ensure compatibility with 2.92mm interfaces and validate that the 1 Watt power rating meets system requirements. Check for any regional distribution restrictions or RoHS compliance details before finalizing procurement decisions.

Attenuators Selection Notes

Select the PE7088-3 when a precise 3 dB reduction is required at frequencies extending to 40 GHz. The 2.92mm connector type ensures compatibility with high-performance microwave components. Consider the 1 Watt power limit for appropriate thermal management in the intended application environment.

Attenuators Part Context

This component belongs to Pasternack's line of high-frequency attenuators, which includes various attenuation values such as 8 dB and 20 dB models. These devices are engineered for precision in RF and microwave systems, offering reliable performance across wide bandwidths with standardized connector interfaces.

Attenuators Replacement Considerations

Direct substitutes include other Pasternack 2.92mm fixed attenuators with similar attenuation values, such as the PE7088-8 (8 dB) or PE7088-20 (20 dB), provided the specific attenuation requirement differs. Verify connector gender and impedance matching for cross-model compatibility.
