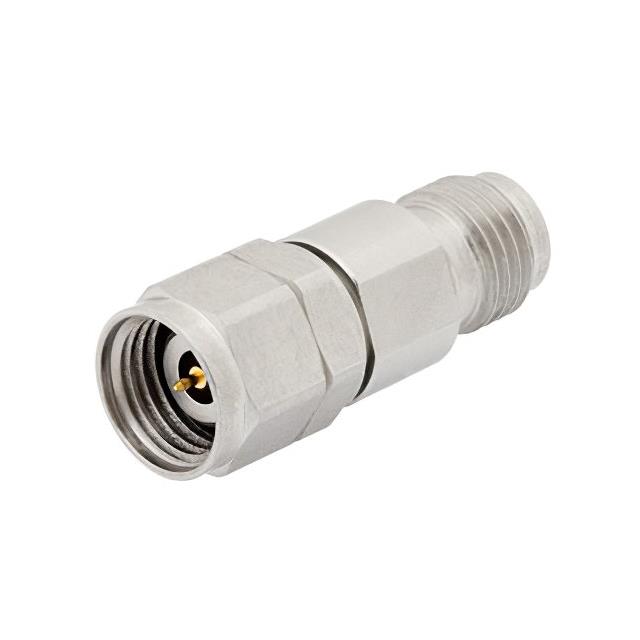

PE7089-6

$521.56

Description：6 dB Fixed Attenuator, 2.4mm Mal
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:ce1ae65df72f Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：6 dB Fixed Attenuator, 2.4mm Mal
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：0 Hz ~ 50 GHz
Power (Watts)：1W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：2.4mm In-Line Module

Download product information

PE7089-6

Overview

The PE7089-6 is a fixed attenuator manufactured by Pasternack, designed for high-frequency applications up to 50 GHz. It provides a precise attenuation value of 6 dB with a nominal impedance of 50 Ohms. The component utilizes 2.4mm connectors, featuring a male-to-female configuration for inline integration. It is rated for a maximum power handling capacity of 1 Watt and is constructed with a stainless steel body to ensure durability and consistent performance in demanding RF environments.

Feature Summary

Provides fixed 6 dB attenuation for signal level control
Operates at frequencies up to 50 GHz
Features 50 Ohm impedance matching
Utilizes 2.4mm male to female connector interface

Applications

High-frequency test and measurement equipment
RF signal chain calibration
Microwave communication systems
Aerospace and defense radar systems

Procurement Notes

Verify the specific connector gender and impedance requirements against system specifications before ordering. Confirm that the 1 Watt power rating and 50 GHz frequency limit align with operational parameters. Ensure compatibility with existing 2.4mm interfaces in the assembly.

Selection Notes

Select this model when a fixed 6 dB reduction is required at microwave frequencies. The 2.4mm interface suits compact high-density designs. Consider thermal management capabilities if continuous operation near the 1 Watt limit is expected. Verify mechanical fit within the enclosure constraints.

Part Context

This component belongs to Pasternack's line of RF attenuators, specifically engineered for precision signal attenuation. It serves as a passive interconnect device, maintaining signal integrity while reducing amplitude. The stainless steel construction supports reliability in harsh conditions compared to plated alternatives.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Direct replacement requires identical 2.4mm interface, 6 dB attenuation, and 50 GHz frequency rating specifications.
