PE7311-6

Overview

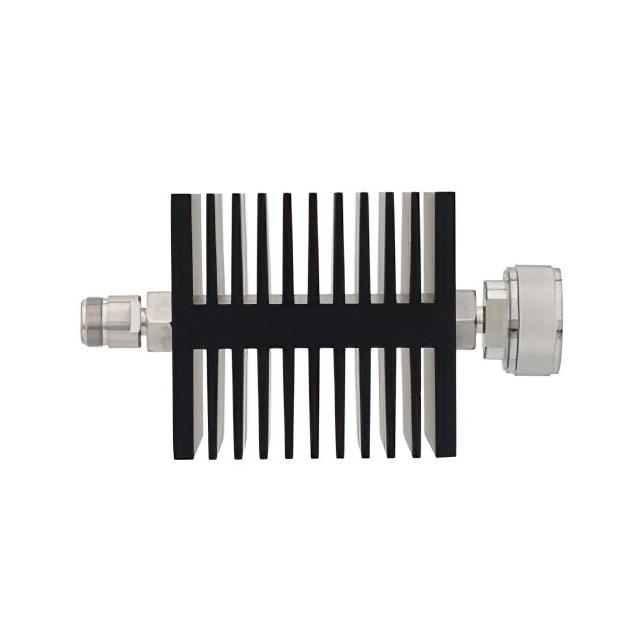

The Pasternack PE7311-6 is a 6 dB fixed attenuator designed for high-frequency applications up to 7.5 GHz. It features an N female connector on one end and a 7/16 DIN male connector on the other, providing a versatile interface solution. The device is rated for 50 Watts of power at the stated attenuation value and operates within a frequency range of 0 Hz to 7.5 GHz. Constructed with a 50 Ohm impedance, it utilizes black anodized aluminum housing for durability and thermal management.

Feature Summary

• Provides precise 6 dB signal attenuation for RF circuitry
• Supports high power handling capability of 50 Watts
• Operates effectively across a wide frequency spectrum up to 7.5 GHz
• Features durable black anodized aluminum construction

Applications

• General-purpose RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• Microwave system component integration
• Laboratory experimental setups requiring fixed attenuation

Procurement Notes

Verify that the specific part number PE7311-6 matches the required connector configuration of N female to 7/16 DIN male. Confirm that the 50 Watt power rating and 7.5 GHz frequency limit are sufficient for your application's peak power and bandwidth requirements. Ensure compatibility with 50 Ohm system impedance before procurement.

Selection Notes

Select this model when a fixed 6 dB reduction is needed between N-type and 7/16 DIN interfaces. Consider the 50 Watt power rating for high-power transmission lines. Evaluate the 7.5 GHz upper frequency limit against your operational bandwidth needs. Choose this directional design if specific port isolation characteristics are required for the setup.

Part Context

This component belongs to Pasternack's series of fixed microwave attenuators. It serves as a passive RF module used to reduce signal amplitude without introducing significant distortion. The specific model bridges different connector standards, facilitating connections between systems utilizing N-type and 7/16 DIN interfaces in professional RF environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Pasternack catalogs or authorized distributors for equivalent models with matching electrical specifications and connector configurations.
