PE7313-10

Overview

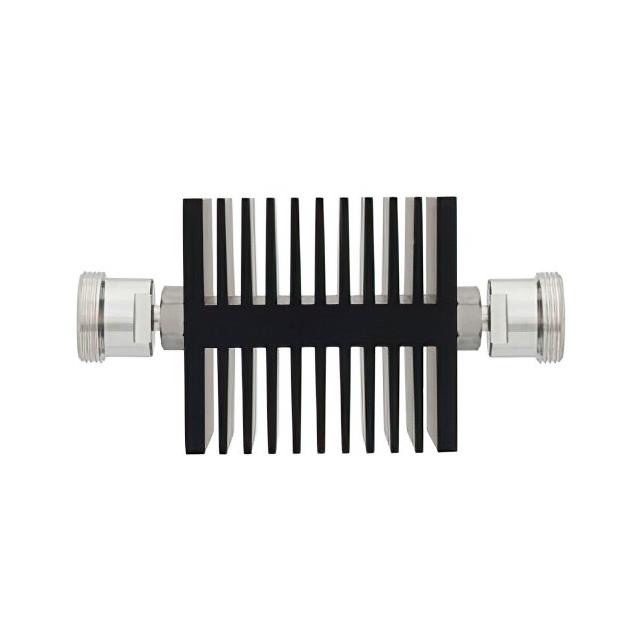

The Pasternack PE7313-10 is a fixed RF attenuator designed for high-frequency applications. It provides a nominal attenuation of 10 dB across a frequency range of 0 Hz to 7.5 GHz. The component features 7/16 DIN female connectors and maintains a 50 Ohm impedance. It is rated for a maximum power handling capacity of 50 Watts at the stated attenuation value. The unit utilizes a hex body design for secure installation.

Feature Summary

• Provides stable 10 dB signal reduction
• Operates up to 7.5 GHz frequency
• Supports 50 Watt power handling
• Features 7/16 DIN female interfaces

Applications

• RF signal level adjustment in test equipment
• Attenuation in microwave communication systems
• Impedance matching in 50 Ohm networks
• Signal conditioning for high-frequency measurements

Procurement Notes

Verify that the specific part number matches the required 10 dB attenuation and 7/16 DIN connector configuration. Confirm that the 50 Watt power rating and 7.5 GHz frequency limit align with system requirements. Ensure compatibility with existing 50 Ohm infrastructure before procurement.

Selection Notes

Select this model when a precise 10 dB reduction is needed within the 0 Hz to 7.5 GHz band. The 7/16 DIN interface suits high-power applications requiring robust connections. Consider the 50 Watt power rating for systems with significant signal strength. Verify physical dimensions and mounting requirements for integration.

Part Context

This component belongs to Pasternack's fixed attenuator series, specifically utilizing the 7/16 DIN connector standard. It is engineered for passive RF signal management in high-frequency environments. The design supports reliable performance in demanding microwave applications requiring consistent attenuation characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact specifications before considering alternative models from other manufacturers.
