PEANED1004

$565.76

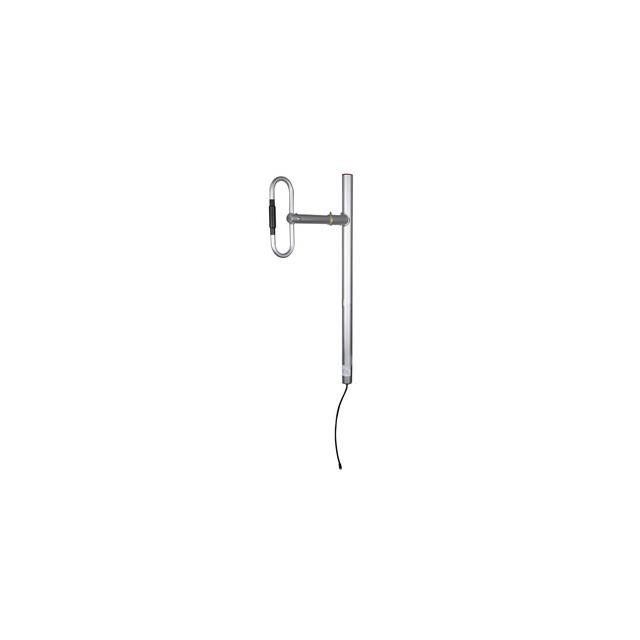

Description：1 Folded Dipole antenna, 380 MHz
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:a0573e2eb2f6 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEANED1004 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 1 Folded Dipole antenna, 380 MHz. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEANED1004

Description：1 Folded Dipole antenna, 380 MHz
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：425MHz
Frequency Range：380MHz ~ 470MHz
Antenna Type：Module
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：4.1dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：39.600" (100.58cm)
Applications：General Purpose
Power - Max：100 W

Antennas RF datasheet and documents for PEANED1004

PEANED1004

Antennas RF Overview

The PEANED1004 is a single-element exposed folded dipole antenna manufactured by Pasternack. It operates within the frequency range of 380 MHz to 470 MHz. The component provides a gain of 4.1 dBi, which corresponds to 1.95 dBd. This RF antenna is designed for high-performance applications requiring reliable signal transmission and reception in the specified VHF band.

Antennas RF Feature Summary

Single-element exposed folded dipole design
High-performance operation in the 380-470 MHz range
Provides 4.1 dBi gain

Antennas RF Applications

VHF communication systems
Broadcasting equipment
RF signal transmission setups

Antennas RF Procurement Notes

Verify the exact part number PEANED1004 against official Pasternack documentation to ensure compatibility with your specific frequency requirements. Confirm that the exposed dipole form factor meets your installation constraints. Check for any specific environmental ratings or connector specifications if applicable to your system integration needs.

Antennas RF Selection Notes

Select this model when a fixed-frequency solution is required for the 380-470 MHz band. The exposed dipole structure offers distinct mechanical characteristics compared to enclosed antennas. Ensure the application environment accommodates the physical exposure of the radiating elements for optimal performance.

Antennas RF Part Context

Pasternack Electronics specializes in RF and microwave components, including antennas, cables, and connectors. The PEANED1004 belongs to their portfolio of specialized RF antennas designed for specific frequency bands. As a global supplier, Pasternack supports various engineering applications with standardized and custom RF solutions.

Antennas RF Replacement Considerations

For similar frequency coverage, consider the PEANED1008, which operates from 406 MHz to 512 MHz with Type N Female connectors. Verify that the gain and polarization requirements align before substituting models.
