PESMA1018

$2.06

Description：2400-2500/ 5150-5825 MHz, 4.8/3.
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:7977645ad7fd Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PESMA1018 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2400-2500/ 5150-5825 MHz, 4.8/3.. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PESMA1018

Description：2400-2500/ 5150-5825 MHz, 4.8/3.
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.487GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
Antenna Type：Stamped Metal
Number of Bands：2
VSWR：2
Return Loss：-
Gain：4.8dBi, 3.7dBi
Features：Cable - 378.46mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：1.280" (32.50mm)
Applications：802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
Power - Max：1 W

Antennas RF datasheet and documents for PESMA1018

PESMA1018

Antennas RF Overview

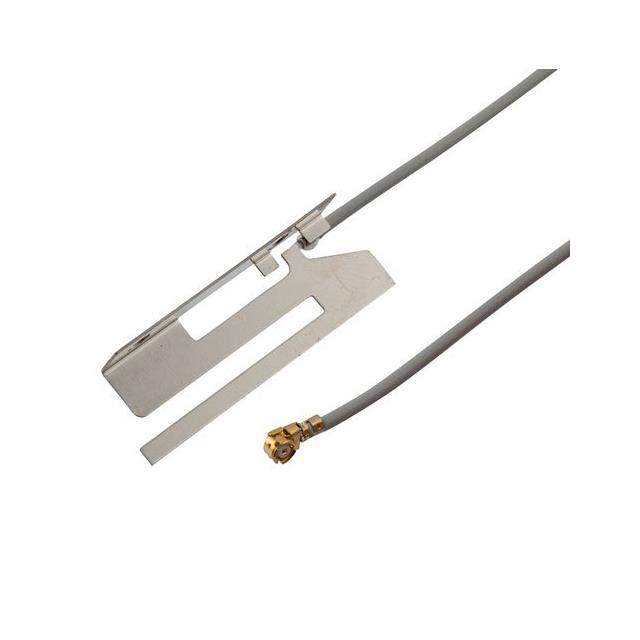

The Pasternack PESMA1018 is a dual-band embedded antenna designed for wireless communication systems. It operates in the 2400-2500 MHz band with a gain of 4.8 dBi and the 5150-5825 MHz band with a gain of 3.7 dBi. The unit utilizes stamped metal construction to ensure durability and consistent signal performance across specified frequency ranges.

Antennas RF Feature Summary

Dual-band operation supporting 2.4 GHz and 5 GHz Wi-Fi frequencies
Stamped metal housing for structural integrity
Embedded design suitable for AP and router integration

Antennas RF Applications

Access Point (AP) integration
Router embedded installation
Wireless network infrastructure

Antennas RF Procurement Notes

Verify the specific part number suffix against official documentation to confirm exact specifications, as variations may exist within the product family. Ensure compatibility with the intended host device's mounting requirements and connector interface before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when dual-band coverage at 2.4 GHz and 5 GHz is required within an embedded form factor. The stamped metal construction offers a balance of cost-effectiveness and performance for standard indoor wireless applications requiring moderate gain levels.

Antennas RF Part Context

This model belongs to Pasternack's portfolio of RF antennas designed for reliable signal transmission in general-purpose and communication systems. It serves as a specialized solution for integrating wireless capabilities into compact electronic devices without compromising radiation efficiency.
