PEWAN1153

Antennas RF Overview

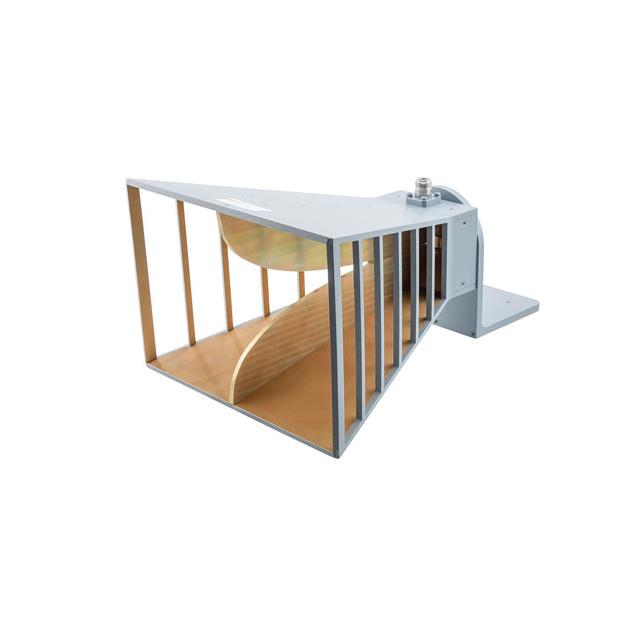

The PEWAN1153 is a broadband gain horn antenna manufactured by Pasternack. It operates within a frequency range of 1 GHz to 4 GHz and provides a nominal gain of 10 dBi. The component features an N-type female connector for interfacing with compatible RF systems. It is designed as a general-purpose horn antenna suitable for various testing and measurement applications requiring stable performance across the specified bandwidth.

Antennas RF Feature Summary

• Broadband operational capability covering 1 GHz to 4 GHz
• Fixed 10 dBi gain specification for signal amplification
• N-type female connector interface for standard integration

Antennas RF Applications

• General purpose RF testing environments
• Antenna characterization and measurement setups
• Wideband signal reception applications

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and mounting bracket details prior to integration. Ensure that the N-type female connector compatibility matches the mating cable or equipment port specifications. Confirm environmental ratings if deployment involves extreme temperature conditions, as standard indoor ratings may apply.

Antennas RF Selection Notes

Select this model when a fixed-gain solution is required for the 1-4 GHz spectrum. Consider the physical size constraints of the installation site due to the horn structure. Evaluate whether the 10 dBi gain meets system link budget requirements compared to lower or higher gain alternatives in the Pasternack portfolio.

Antennas RF Part Context

This component belongs to Pasternack's line of RF antennas, specifically focusing on broadband horn designs. It complements their broader selection of microwave components, including amplifiers, switches, and cable assemblies, providing users with integrated solutions for RF infrastructure and testing needs.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer directly for cross-reference information or equivalent models with similar frequency and gain specifications.
