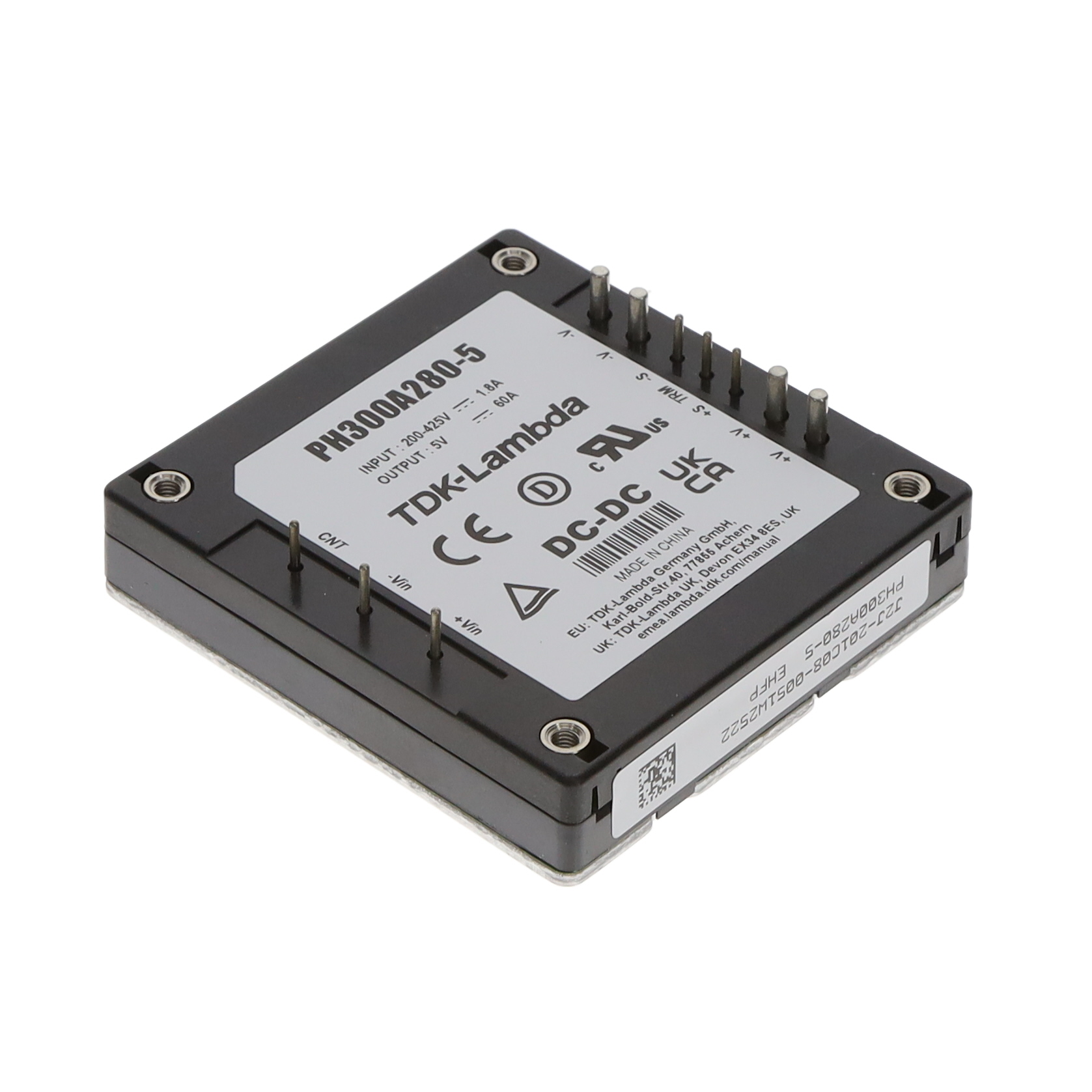

PH300A280-5

PH300A280-5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 5V 300W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PH300A280-5

• Description：DC DC CONVERTER 5V 300W
• Series：PH-A (300W)
• Mfr：TDK-Lambda
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：200V
• Voltage - Input (Max)：425V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：60A
• Power (Watts)：300 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 100°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：CE
• Standard Number：-

DC DC Converters datasheet and documents for PH300A280-5
