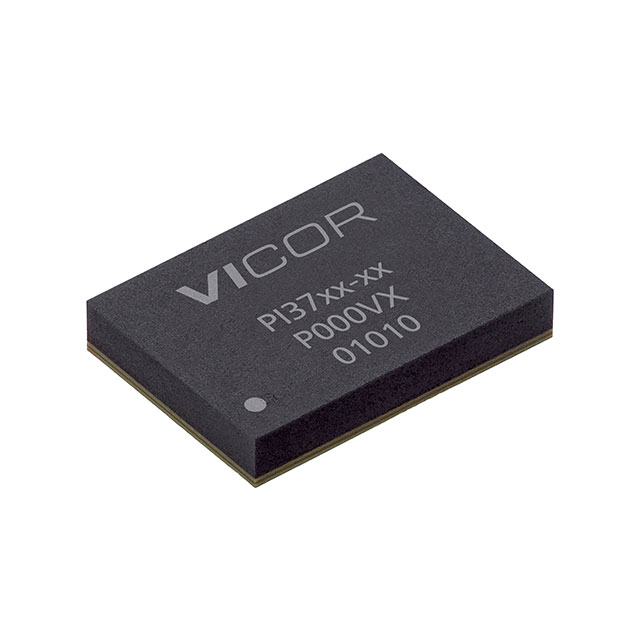

PI3740-00-LGMZ

$62.40

Description：IC REG BUCK BOOST ADJ/10V 108LGA
Series：Cool-Power®
Mfr：Vicor Corporation
Package：Tray

SKU:a2345a3000c8 Category: Voltage Regulators - DC DC Switching Regulators Brand: Vicor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PI3740-00-LGMZ is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Vicor Corporation. Its product description is IC REG BUCK BOOST ADJ/10V 108LGA. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for PI3740-00-LGMZ

Description：IC REG BUCK BOOST ADJ/10V 108LGA
Series：Cool-Power®
Mfr：Vicor Corporation
Package：Tray
Function：Step-Up/Step-Down
Output Configuration：Positive
Topology：Buck-Boost
Output Type：Adjustable (Fixed)
Number of Outputs：1
Voltage - Input (Min)：8V
Voltage - Input (Max)：60V
Voltage - Output (Min/Fixed)：10V (12V)
Voltage - Output (Max)：50V
Current - Output：7.42A
Frequency - Switching：1MHz
Synchronous Rectifier：Yes
Operating Temperature：-55°C ~ 115°C (TJ)
Mounting Type：Surface Mount
Package / Case：108-BLGA Module
Supplier Device Package：108-LGA (14x10)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for PI3740-00-LGMZ

PI3740-00-LGMZ

Voltage Regulators - DC DC Switching Regulators Overview

The PI3740-00-LGMZ is a ZVS Buck-Boost switching regulator from Vicor's Cool-Power series, housed in a 108-pin LGA package. It supports an input voltage range of 8V to 60V and delivers an adjustable output voltage between 10V and 50V. The device provides a maximum output current of 7.42A with a fixed frequency operation at 1MHz. It operates within a junction temperature range of -55°C to +115°C and features synchronous rectification for high efficiency.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Zero Voltage Switching (ZVS) topology minimizes switching losses and electromagnetic interference.
Buck-Boost capability allows stable regulation across wide input and output voltage variations.
Synchronous rectification enhances conversion efficiency under varying load conditions.
High-density System-in-Package design reduces external component count and board space.

Voltage Regulators - DC DC Switching Regulators Applications

Industrial automation power systems
Telecommunications infrastructure equipment
Automotive electronics and EV charging stations
Battery formation and test systems

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'LGMZ' against the manufacturer's latest datasheet to confirm pinout compatibility and RoHS status. Ensure that the selected variant matches the required thermal management specifications for the intended operating environment. Cross-reference ordering information with authorized distributors to avoid counterfeit components.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this regulator when a wide input voltage range is required without sacrificing output stability. The ZVS technology makes it suitable for applications demanding high efficiency and low noise. Consider the 108-pin LGA package constraints for PCB layout and thermal dissipation requirements during the initial design phase.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to Vicor's PI3740 family of non-isolated buck-boost regulators. It is designed to replace older discrete solutions by integrating power stages into a single module. The family supports parallel operation for increased power capacity in higher wattage applications.
