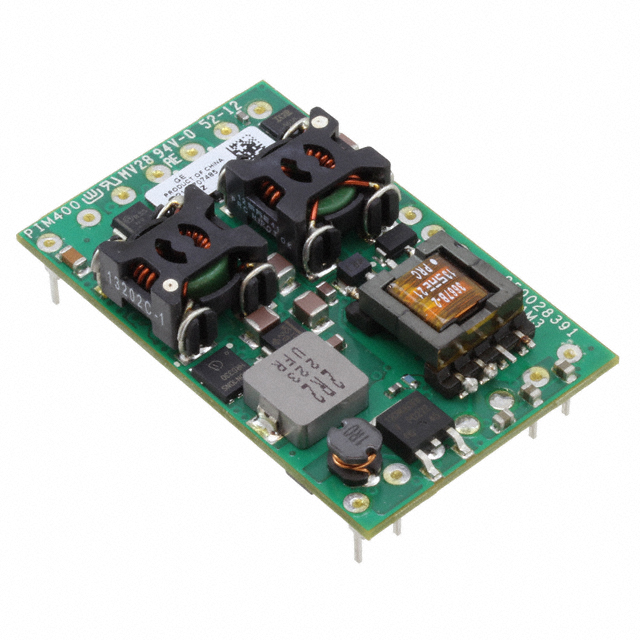

PIM400Z

PIM400Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER -48V 400W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PIM400Z

• Description：DC DC CONVERTER -48V 400W
• Series：PIM400 (400W)
• Mfr：OmniOn Power™
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：-36V
• Voltage - Input (Max)：-75V
• Voltage - Output 1：-48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：-
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：98.50%
• Mounting Type：Through Hole
• Package / Case：15-DIP Module, 1/4 Brick
• Size / Dimension：2.30" L x 1.45" W x 0.54" H (58.4mm x 36.8mm x 13.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PIM400Z
