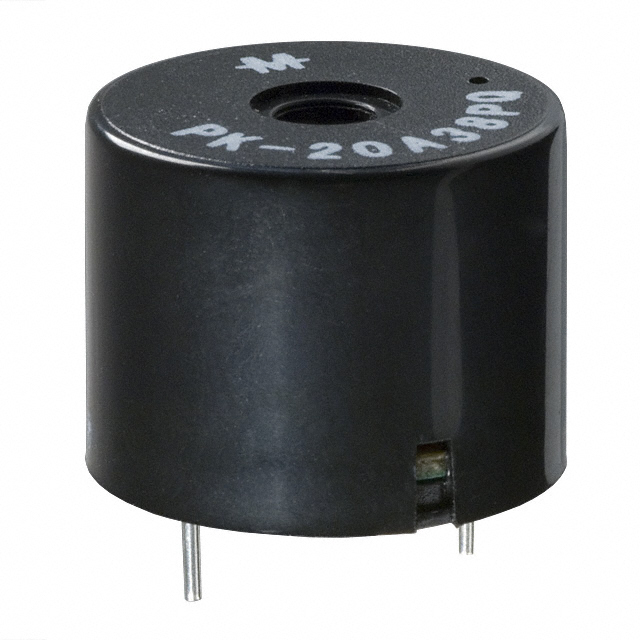

PK-20A38PQ

$2.92

Description：BUZZER PIEZO 12V 23MM TH
Series：PK
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:47cb2613ec6e Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PK-20A38PQ is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 12V 23MM TH. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for PK-20A38PQ

Description：BUZZER PIEZO 12V 23MM TH
Series：PK
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：3.8kHz
Technology：Piezo
Operating Mode：Single Tone
Duration：-
Sound Pressure Level (SPL)：95dB @ 12V, 30cm
Current - Supply：15mA
Port Location：Top
Operating Temperature：-20°C ~ 70°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.717" (18.20mm)
Voltage - Rated：12 V
Voltage Range：3 ~ 24V
Size / Dimension：0.906" Dia (23.00mm)

Alarms, Buzzers, And Sirens datasheet and documents for PK-20A38PQ

PK-20A38PQ

Alarms, Buzzers, And Sirens Overview

The PK-20A38PQ is a piezoelectric buzzer from Mallory Sonalert Products Inc., designed for board mounting. It operates on a DC input voltage range of 3 to 24VDC. The device generates a constant tone at a frequency of 3.8kHz with a sound pressure level of 95dB. Physical dimensions are 23mm x 18mm, utilizing PC pin termination.

Alarms, Buzzers, And Sirens Feature Summary

Piezoelectric technology for reliable audio indication
Internal driver circuitry for direct connection
Constant tone output mode
Board mount configuration with PC pins

Alarms, Buzzers, And Sirens Applications

Industrial control panels
Medical equipment alarms
Automotive status indicators
Consumer appliance alerts

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific voltage rating and acoustic requirements against the official datasheet before procurement. Confirm that the 3-24VDC operating range aligns with the target system power supply. Ensure the board mounting footprint matches the PCB design specifications. Check for any regional compliance certifications required for the end application.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a compact, high-decibel indicator is needed for space-constrained designs. The wide voltage tolerance simplifies integration across various power domains. Consider the 3.8kHz frequency for optimal human audibility in noisy environments. Evaluate thermal constraints if the device will operate continuously near maximum voltage limits.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the Sonalert series of piezoelectric buzzers. It is manufactured by Mallory Sonalert Products Inc., a specialist in audio signaling devices. The product line focuses on robust, internally driven indicators for industrial and commercial applications.
