PMEG6030AEXE-QX

Single Diodes Overview

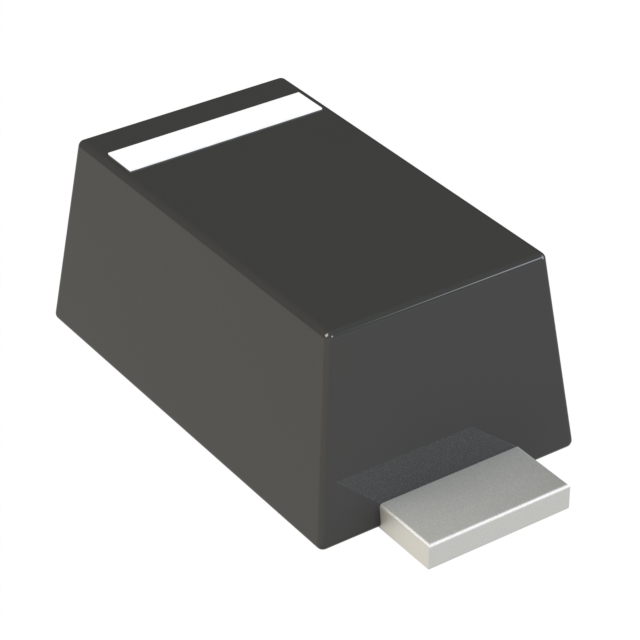

The PMEG6030AEXE-Q is a planar Schottky barrier rectifier from Nexperia, housed in a CFP3-HP (SOD123HP) surface-mounted package. It supports an average forward current of 3 A and a reverse voltage of 60 V. The device features a typical forward voltage of 500 mV at 3 A and a maximum non-repetitive peak forward current of 80 A. Operating temperatures range from -55 °C to +175 °C junction temperature, with total power dissipation rated at 1.3 W.

Single Diodes Feature Summary

• Qualified according to AEC-Q101 for automotive applications
• High surge current robustness with clip bond technology
• Power flat lead plastic package with exposed heatsink for optimal thermal connection

Single Diodes Applications

• Low voltage rectification
• High efficiency DC-to-DC conversion
• Switch Mode Power Supply (SMPS)
• Reverse polarity protection

Single Diodes Procurement Notes

Verify the specific ordering suffix 'A' against the official Nexperia datasheet to confirm the exact electrical characteristics and package variant. Ensure the procurement documentation references the correct part number PMEG6030AEXE-Q to distinguish it from similar models within the product family. Confirm compliance requirements such as RoHS and REACH status directly from the manufacturer's declaration before finalizing orders.

Single Diodes Selection Notes

Select this component when designing circuits requiring high-efficiency rectification with low forward voltage drop. The exposed heatsink design makes it suitable for applications demanding effective thermal management. Verify that the 60 V reverse voltage rating aligns with the system's peak operating conditions. Consider the AEC-Q101 qualification if the target environment involves automotive stress testing requirements.

Single Diodes Part Context

This Schottky barrier rectifier belongs to Nexperia's portfolio of power discrete semiconductors designed for surface-mount assembly. The SOD123HP package provides a compact footprint while maintaining high power capability through its clip-bond construction. It serves as a specialized solution for modern electronics where space constraints and thermal performance are critical design factors.

Single Diodes Replacement Considerations

Consult the official Nexperia replacement guide or datasheet revision history for confirmed substitute part numbers. Do not assume cross-compatibility with other Schottky diodes without verifying pinout, voltage ratings, and thermal resistance specifications.
