PMS430E325AFZ

Microcontrollers Overview

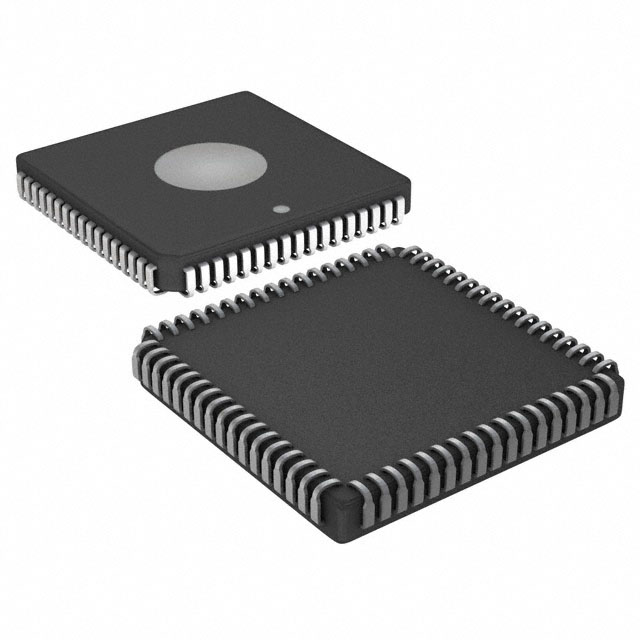

The PMS430E325AFZ is an EPROM version of the MSP430P325A mixed-signal microcontroller, housed in a 68-pin JLCC package. It features a 16-bit RISC CPU with 16 kB OTP/EPROM memory and 512 bytes of RAM. The device operates within a supply voltage range of 2.5 V to 5.5 V and supports a system clock up to 3.3 MHz via an internal FLL. Key peripherals include a 12+2 bit ADC with six multiplexed inputs, an integrated LCD driver for up to 84 segments, and multiple timer modules.

Microcontrollers Feature Summary

• Ultra-low power architecture supporting five power-saving modes with standby current down to 0.1 µA
• Integrated LCD driver capable of handling up to 84 segments with configurable mux rates
• Built-in 12+2 bit analog-to-digital converter with software-controlled range selection
• Frequency-locked loop (FLL) enables rapid wakeup from low-power modes in under 6 µs

Microcontrollers Applications

• Sensor systems requiring analog signal capture and digital processing
• Battery-operated devices demanding extended operational lifetime
• Prototyping environments utilizing EPROM versions for code modification
• Applications necessitating direct LCD display integration

Microcontrollers Procurement Notes

Verify that the specific ordering suffix corresponds to the 68-pin JLCC ceramic package and the 25°C operating temperature range. Confirm the component is the EPROM variant intended for prototyping rather than the OTP or ROM production versions. Ensure compatibility with existing 68-pin footprints and programming interfaces.

Microcontrollers Selection Notes

Select this component when EPROM reprogrammability is required for development cycles. The 68-pin JLCC package offers robustness for specific industrial environments compared to plastic packages. Consider the 2.5 V to 5.5 V supply range for flexibility in power design. Evaluate the 3.3 MHz maximum clock speed against application timing requirements.

Microcontrollers Part Context

This part belongs to the MSP430x32x family of ultra-low-power mixed-signal microcontrollers. It shares the core architecture with the MSP430C325 and MSP430P325A but utilizes EPROM technology. This allows for field reprogramming, distinguishing it from the one-time programmable OTP and mask ROM variants within the same series.

Microcontrollers Replacement Considerations

MSP430C325IPG

Microcontrollers FAQ

What is the primary difference between PMS430E325AFZ and MSP430P325A?

The PMS430E325AFZ is an EPROM version designed for prototyping, allowing code modifications, whereas the MSP430P325A uses One-Time Programmable (OTP) memory.

How does the device achieve fast wakeup from low-power modes?

It utilizes a digitally-controlled oscillator (DCO) combined with a frequency-locked-loop (FLL), enabling wakeup to active mode in less than 6 µs.
