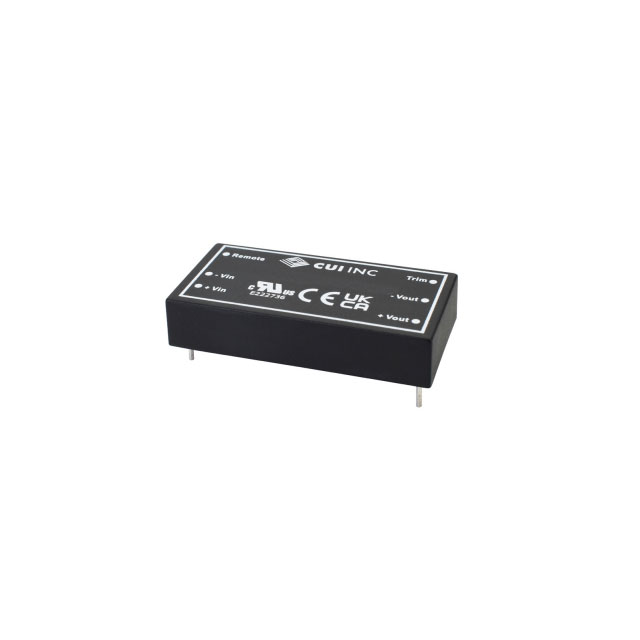

PRFE20W-O72-D12N-D

PRFE20W-O72-D12N-D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC-DC ISOLATED, 20 W, 8.5~160 VD. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PRFE20W-O72-D12N-D

• Description：DC-DC ISOLATED, 20 W, 8.5~160 VD
• Series：PRF20 (20W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：8.5V
• Voltage - Input (Max)：160V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：830mA, 830mA
• Power (Watts)：20 W
• Voltage - Isolation：4.2 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PRFE20W-O72-D12N-D
