- Description：BUZZER PIEZO 5V 13.8MM TH
- Series：PT
- Mfr：Mallory Sonalert Products Inc.
- Package：Bulk
- Driver Circuitry：Transducer, Externally Driven
- Input Type：Peak-Peak Signal
- Frequency：4.1kHz
- Technology：Piezo
- Operating Mode：Single Tone
- Duration：-
- Sound Pressure Level (SPL)：80dB @ 5V, 10cm
- Current - Supply：2mA
- Port Location：Top
- Operating Temperature：-20°C ~ 70°C
- Approval Agency：-
- Ratings：-
- Ingress Protection：-
- Mounting Type：Through Hole
- Termination：PC Pins
- Height - Seated (Max)：0.335" (8.50mm)
- Voltage - Rated：5 V
- Voltage Range：1 ~ 20V
- Size / Dimension：0.543" Dia (13.80mm)
Download product information
Overview

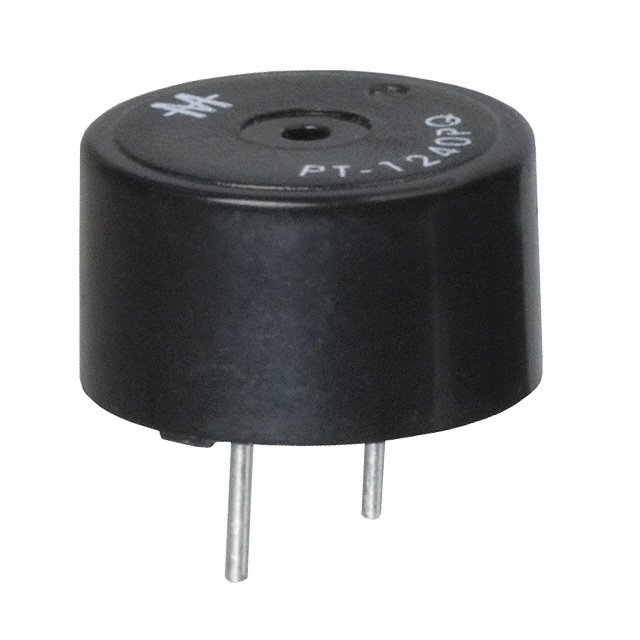

The PT-1240PQ is an external drive piezoelectric transducer manufactured by Mallory Sonalert. It operates at a nominal frequency of 4.1 kHz with a sound pressure level of 80 dB. The device is rated for 5 VDC voltage and draws 2 mA current. It features through-hole solder pin termination and measures 13.8 mm in diameter by 8.3 mm in height.
Feature Summary
- External drive piezoelectric technology requiring an external oscillator circuit
- Through-hole mounting configuration with solder pin terminals
- Compact circular form factor suitable for panel or board integration
Applications
- Electronic equipment status indication
- General purpose audio alerting systems
- Industrial control panel signaling
Procurement Notes
Verify the specific ordering suffix to ensure correct terminal type and acoustic specifications. Confirm RoHS compliance status as indicated in official documentation. Cross-reference the manufacturer part number with distributor catalogs to validate availability and lead times. Ensure the application circuit supports the required external drive signal for proper operation.
Selection Notes
Select this component when an external drive piezo transducer is required for through-hole assembly. Compare the 80 dB SPL and 4.1 kHz frequency against system acoustic requirements. Verify that the 5 VDC operating voltage aligns with the available supply rails. Consider the physical dimensions for enclosure clearance and mounting hole spacing.
Part Context
This component belongs to the PT series of piezoelectric transducers from Mallory Sonalert. These devices are designed for applications requiring high reliability and consistent acoustic performance. The series offers various frequencies and sound pressure levels to suit different alerting needs across industrial and consumer electronics markets.
