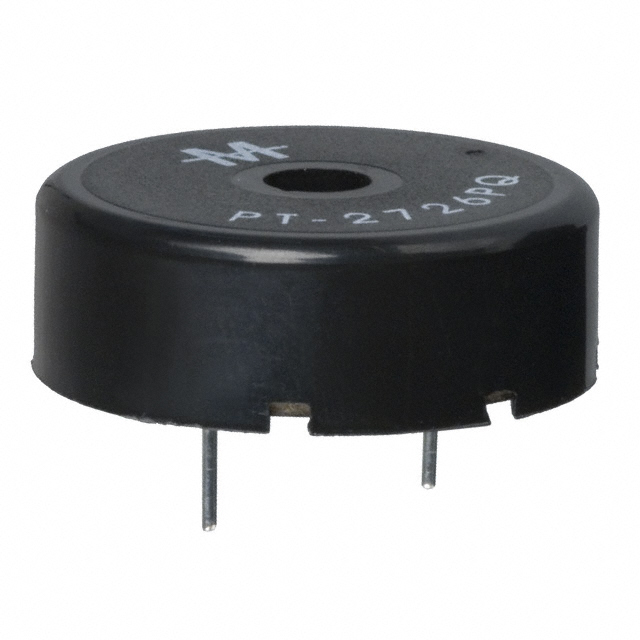

PT-2726PQ

$1.95

Description：BUZZER PIEZO 5V 30MM TH
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:3d5280a755bd Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PT-2726PQ is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 5V 30MM TH. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for PT-2726PQ

Description：BUZZER PIEZO 5V 30MM TH
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Transducer, Externally Driven
Input Type：Peak-Peak Signal
Frequency：2.5kHz
Technology：Piezo
Operating Mode：Single Tone
Duration：-
Sound Pressure Level (SPL)：90dB @ 5V, 10cm
Current - Supply：1.5mA
Port Location：Top
Operating Temperature：-20°C ~ 70°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.402" (10.20mm)
Voltage - Rated：5 V
Voltage Range：1 ~ 30V
Size / Dimension：1.181" Dia (30.00mm)

Alarms, Buzzers, And Sirens datasheet and documents for PT-2726PQ

PT-2726PQ

Alarms, Buzzers, And Sirens Overview

The PT-2726PQ is a piezoelectric audio indicator manufactured by Mallory Sonalert. It operates with a peak-to-peak voltage range of 1.5mA to 5Vp-p and produces a sound pressure level of 90dBA at a frequency between 2000Hz and 3000Hz. The component utilizes pin through-hole mounting for secure circuit board integration.
