PYETGLJANF-26.600000

Oscillators Overview

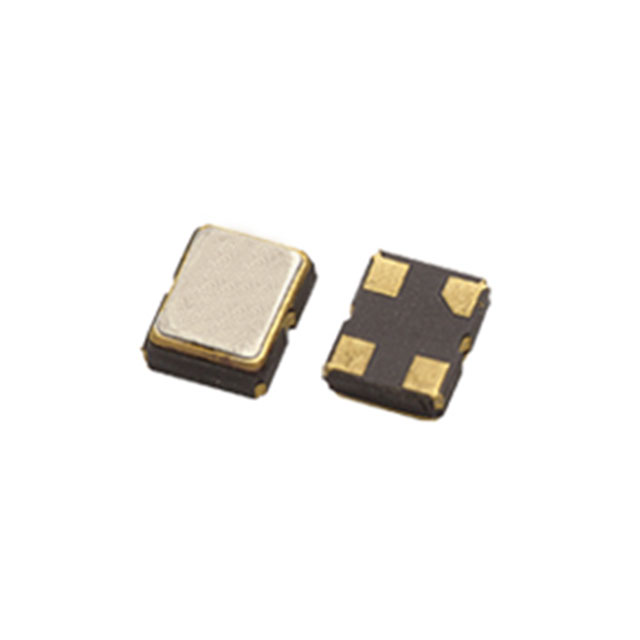

The PYETGLJANF-26.600000 is a standard CMOS clock oscillator manufactured by Taitien, operating at a nominal frequency of 26.6 MHz. It features a supply voltage range of 2.8V to 3.3V and includes an enable/disable control function. The component utilizes a 4-SMD, no-lead surface-mount package design compliant with RoHS standards.

Oscillators Feature Summary

• CMOS output interface for digital logic compatibility
• Integrated enable and disable functionality for power management
• Surface-mount construction for automated assembly

Oscillators Applications

• Digital system clock generation
• Microprocessor timing references
• Communication equipment signal synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's current product change notices. Taitien has issued notices regarding the phase-out of certain PX and PY series part numbers, potentially replacing them with updated variants such as the PYEUGLJAYF series. Confirm that the requested model number matches the active production version available from authorized distributors to ensure long-term availability and functional equivalence.

Oscillators Selection Notes

Select this oscillator when a 26.6 MHz reference is required for CMOS-compatible circuits. Ensure the application environment supports the 2.8V to 3.3V supply range. The enable pin allows for dynamic power control, which is beneficial for battery-operated or energy-efficient designs. Verify that the 4-SMD footprint fits the PCB layout constraints.

Oscillators Part Context

This component belongs to Taitien's line of quartz frequency control products, specifically standard crystal oscillators (XO). Taitien is a recognized manufacturer established in 1976, specializing in frequency control solutions including crystals, VCXOs, and TCXOs. This series provides reliable timing signals for various electronic applications requiring precise frequency stability.

Oscillators Replacement Considerations

Check for official replacement part numbers listed in Taitien's Product Change Notices, such as the PYEUGLJAYF series, which may supersede older PY series designs. Ensure any substitute maintains the same frequency, package type, and electrical characteristics.
