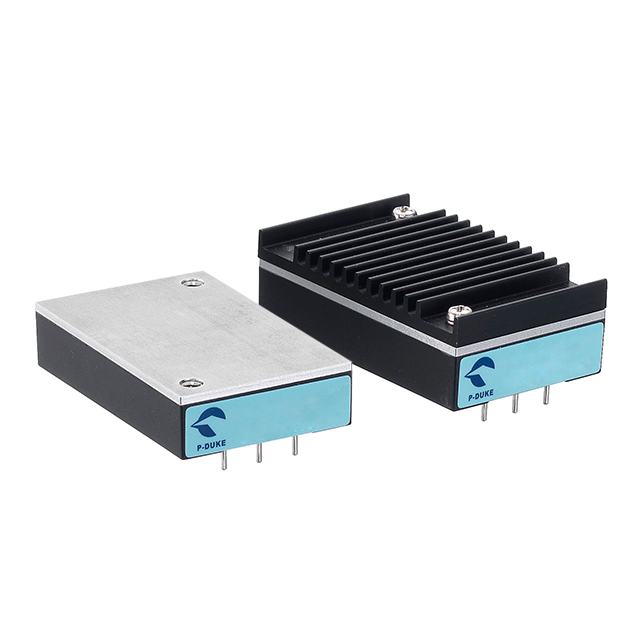

QAE150-48S48

QAE150-48S48 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 48V 144W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QAE150-48S48

• Description：DC DC CONVERTER 48V 144W
• Series：QAE150 (150W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：33V
• Voltage - Input (Max)：75V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3A
• Power (Watts)：144 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for QAE150-48S48
