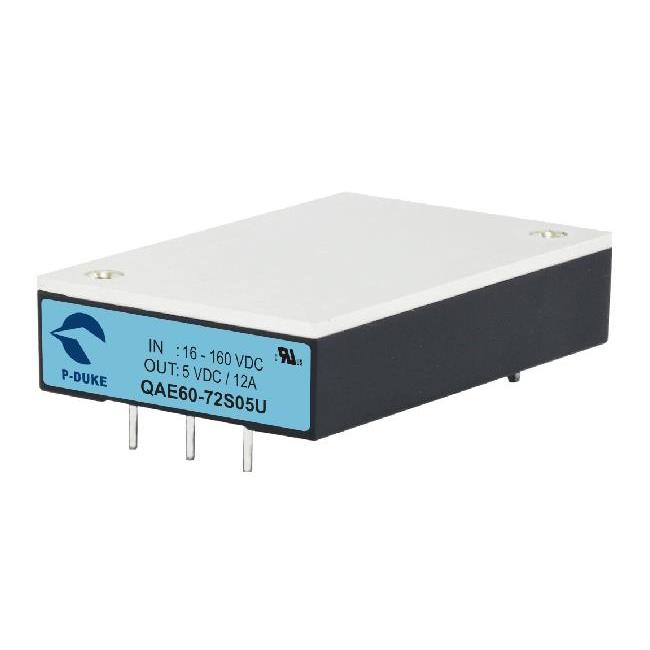

QAE60-72S05U-P

QAE60-72S05U-P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 60W/ VOUT:5. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QAE60-72S05U-P

• Description：ISOLATED / 60W/ VOUT:5
• Series：QAE60U (60W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：14V
• Voltage - Input (Max)：160V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A
• Power (Watts)：60 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Baseplate, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active High
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for QAE60-72S05U-P
