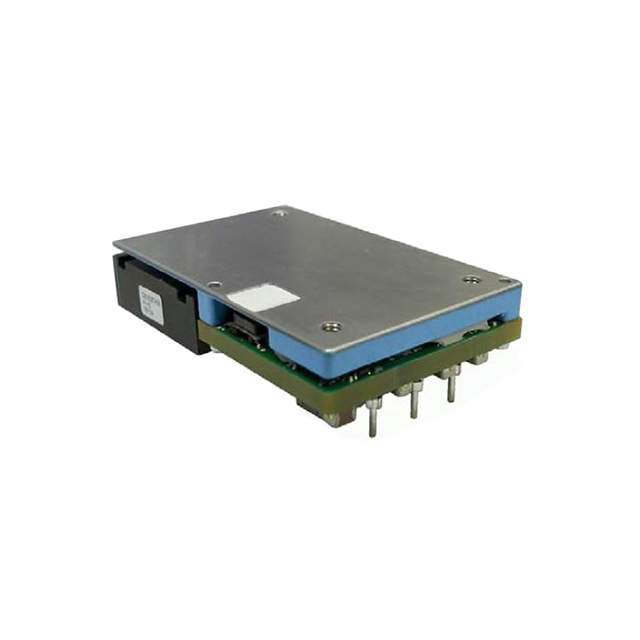

QBDE067A0B641-HZ

QBDE067A0B641-HZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 12V 804W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QBDE067A0B641-HZ

• Description：DC DC CONVERTER 12V 804W
• Series：Barracuda™ QBDE067A0B (800W)
• Mfr：OmniOn Power™
• Package：Box
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67A
• Power (Watts)：804 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96.10%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
