QBLP600-RAG

LED Indication - Discrete Overview

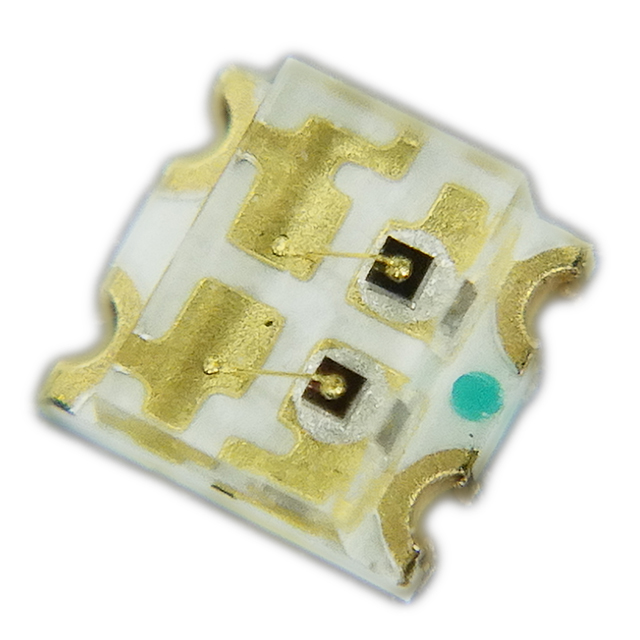

The QBLP600-RAG is a dual-color surface-mount LED from the QBLP600 series by QT Brightek. It features a clear, rectangular lens with a flat top in a 4-SMD, no-lead (0606) package measuring 1.60mm x 1.50mm x 0.80mm max. The component emits red light at 640nm and yellow-green light at 570nm. Typical forward voltage is 2.1V for both colors. Luminous intensity is rated at 80mcd for red and 32mcd for yellow-green at a test current of 20mA. It has a viewing angle of 140 degrees and is RoHS compliant.

LED Indication - Discrete Feature Summary

• Dual-color configuration combining red and yellow-green emissions within a single compact SMD footprint
• Clear optical lens design providing high transparency and defined rectangular beam shape
• Independent circuit configuration allowing separate control of each color element

LED Indication - Discrete Applications

• Status indication on electronic equipment panels
• Bi-color signaling in industrial control systems
• Visual alerts in consumer device interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix RAG to confirm the red/yellow-green wavelength combination and luminous intensity ratings. Ensure the procurement order specifies the tape and reel packaging format, as standard quantities are typically 4,000 units per manufacturer roll. Confirm moisture sensitivity level handling procedures during storage and assembly.

LED Indication - Discrete Selection Notes

Select this part when a compact dual-color indicator is required without common anode/cathode constraints. Compare luminous intensity requirements against the 80mcd red and 32mcd yellow-green specifications. Verify that the 0606 package dimensions fit the available PCB real estate and that the 140-degree viewing angle meets visibility needs.

LED Indication - Discrete Part Context

This component belongs to the QBLP600 series, which focuses on small-form-factor multi-color LEDs. The series utilizes InGaN and AlInGaP technologies to achieve specific color outputs in a standardized 0606 package size, facilitating automated pick-and-place assembly processes.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Cross-reference with other 0606 dual-color SMD LEDs only if electrical parameters and pinout configurations match exactly.
