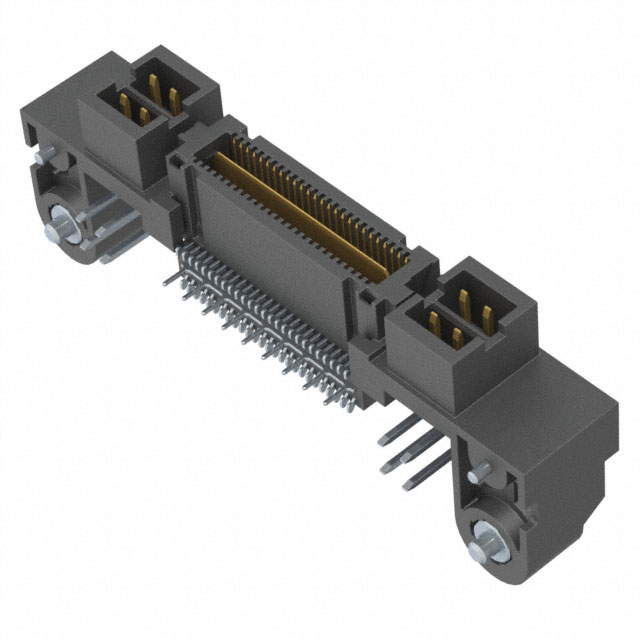

QMS-026-01-SL-D-RA-PC4-K

QMS-026-01-SL-D-RA-PC4-K is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR 52POS R/A GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for QMS-026-01-SL-D-RA-PC4-K

• Description：CONN HDR 52POS R/A GOLD
• Series：Power Q2™ QMS
• Mfr：Samtec Inc.
• Package：Tray
• Connector Type：Header, Outer Shroud Contacts
• Number of Positions：60 (52 + 8 Power)
• Pitch：0.025" (0.64mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle; Through Hole
• Features：Ground Bus (Plane), Pick and Place, Power Pins (8)
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：-
• Height Above Board：0.320" (8.12mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for QMS-026-01-SL-D-RA-PC4-K
