QTLP600C7TR

LED Indication - Discrete Overview

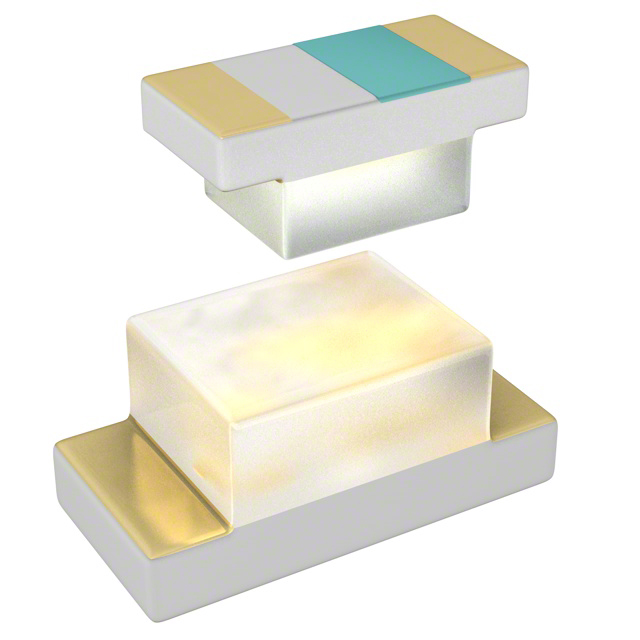

The QTLP600C7TR is a single-color red surface-mount LED manufactured by Everlight Electronics Co Ltd. It utilizes a 0603 (1608 metric) package with dimensions of 1.60mm length, 0.80mm width, and a maximum height of 0.80mm. The component emits red light with a peak wavelength of 660nm and a dominant wavelength of 645nm. Key electrical parameters include a typical forward voltage of 1.9V at a test current of 20mA. The device offers a viewing angle of 100 degrees and provides an optical intensity of 20mcd.

LED Indication - Discrete Feature Summary

• Compact 0603 surface-mount form factor suitable for space-constrained circuit designs
• Water-clear colorless lens ensures high light transmission efficiency
• Rectangular lens style with a flat top design for consistent optical output

LED Indication - Discrete Applications

• Panel indicator lights for electronic equipment
• Status indication in consumer appliances
• Backlighting applications requiring red illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact wavelength and binning requirements for your application. Confirm moisture sensitivity level handling procedures during storage and reflow soldering processes. Check for any recent product change notices or end-of-life announcements from the manufacturer before finalizing procurement plans.

LED Indication - Discrete Selection Notes

Select this component when a standard red SMD LED with a 0603 footprint is required. Ensure the circuit design accommodates the 1.9V forward voltage drop at 20mA. Consider the 100-degree viewing angle for visibility requirements. Verify compatibility with automated pick-and-place equipment due to the reel packaging format.

LED Indication - Discrete Part Context

This part belongs to the Everlight QTLP600 series of single-color surface-mount LEDs. The series includes various colors and wavelengths within the same compact 0603 package outline. This specific variant focuses on red emission characteristics optimized for general indication purposes.

LED Indication - Discrete Replacement Considerations

Consult official Everlight documentation for qualified substitute part numbers within the QTLP600 family or equivalent industry-standard replacements that match the 0603 footprint and electrical specifications.
