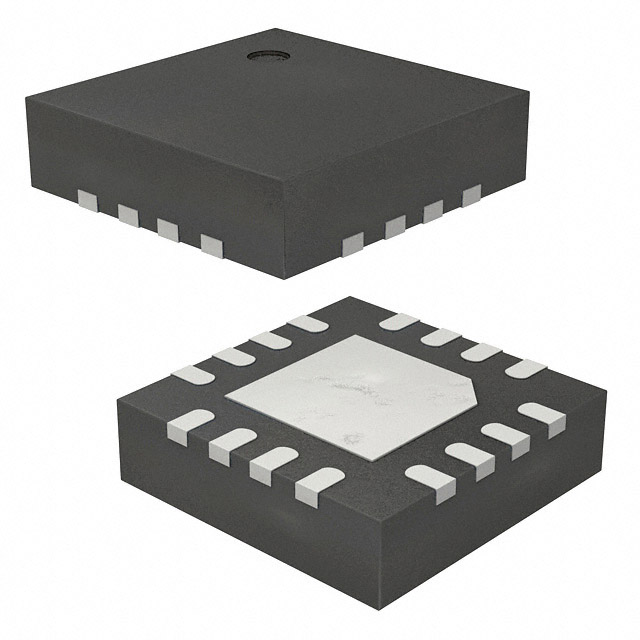

R2A20168NP#W5

Digital To Analog Converters Overview

The R2A20168NP#W5 is a CMOS integrated circuit featuring an 8-channel Digital-to-Analog Converter (DAC) with an I2C bus interface. It operates as a multi-interface serial input/output expander, providing versatile system configuration capabilities. The component utilizes a standard TSSOP-16 package for surface-mount installation.

Digital To Analog Converters Feature Summary

• Integrates eight independent digital-to-analog converter channels within a single semiconductor unit.
• Supports system configuration simplification through built-in I/O expansion functionality.
• Utilizes a CMOS structure to ensure low power consumption and compact physical footprint.

Digital To Analog Converters Applications

• Multi-channel signal generation systems
• I/O expansion in embedded control architectures
• Analog output interfacing for sensor or actuator arrays

Digital To Analog Converters Procurement Notes

Verify the specific suffix W5 against official Renesas documentation to confirm package type and tape-and-reel specifications. Ensure compatibility with I2C bus voltage levels and check for any regional manufacturing restrictions or end-of-life notices prior to finalizing procurement orders.

Digital To Analog Converters Selection Notes

Select this component when a design requires multiple analog outputs controlled via a serial interface without dedicated DAC pins per channel. Evaluate the trade-off between the 8-channel density and the I2C bandwidth limitations compared to parallel interface alternatives.

Digital To Analog Converters Part Context

This part belongs to the R2A20168 series of mixed-signal ICs from Renesas Electronics. It serves as a bridge between digital microcontrollers and analog loads, reducing pin count requirements on the host processor while maintaining precise analog signal control across multiple lines.

Digital To Analog Converters Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that alternative parts match the 16-pin TSSOP footprint and support identical I2C addressing schemes to ensure board-level compatibility without redesign.
