RBA250N10CHPF-4UA02#GB0

Single FETs, MOSFETs Overview

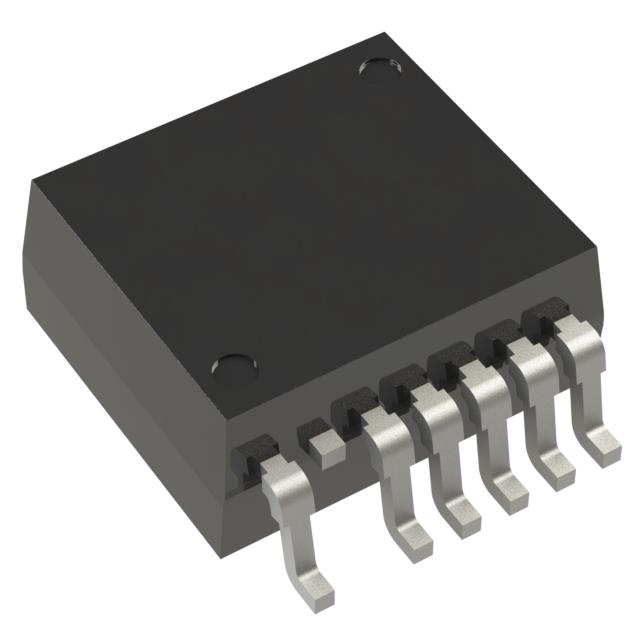

The RBA250N10CHPF-4UA02#GB0 is an N-channel Power MOSFET designed for high-current automotive switching applications. It features a maximum drain-source voltage of 100V and a continuous drain current of 250A. The device achieves a maximum on-state resistance (RDS(on)) of 3.8mΩ at VGS=10V and ID=125A, with a typical input capacitance of 16700pF at VDS=25V. Total gate charge is typically 490nC. It is qualified to AEC-Q101 standards and housed in a TO-263-7/D2PAK-7 package.

Single FETs, MOSFETs Feature Summary

• Super low on-state resistance optimized for high-efficiency power switching
• Designed specifically for demanding automotive application environments
• Qualified to AEC-Q101 automotive reliability standards
• Lead-free construction compliant with environmental regulations

Single FETs, MOSFETs Applications

• Automotive power distribution systems
• High-current motor control circuits
• DC-DC converter stages in electric vehicles

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix #GB0 against official Renesas documentation to confirm exact packaging configuration and tape-and-reel specifications. Ensure the component meets the required AEC-Q101 qualification level for your target automotive system. Confirm that the TO-263-7 package dimensions align with your PCB layout constraints before finalizing procurement orders.

Single FETs, MOSFETs Selection Notes

Select this component when designing circuits requiring high current handling capabilities up to 250A with minimal conduction losses. The 100V rating suits medium-voltage automotive architectures. Consider the thermal performance associated with the D2PAK-7 package for heat dissipation requirements. Compare total gate charge values against driver capabilities to ensure adequate switching speeds without excessive drive power.

Single FETs, MOSFETs Part Context

This part belongs to Renesas' ANL3 series of automotive-grade power MOSFETs. These devices are engineered to replace legacy silicon solutions with improved efficiency metrics. The series supports various chassis and powertrain applications where robust switching and low thermal resistance are critical for system longevity and performance stability.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution lists for direct replacements. Verify pin compatibility and electrical parameters if considering alternative manufacturers. Ensure any substitute maintains AEC-Q101 qualification for automotive safety compliance.
