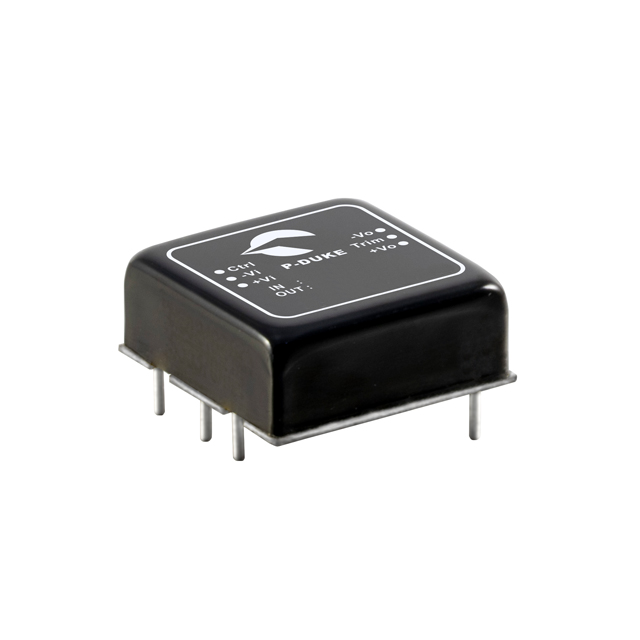

RCD30-24D24W-A

RCD30-24D24W-A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 30W/ VOUT:24. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RCD30-24D24W-A

• Description：ISOLATED / 30W/ VOUT:24
• Series：RCD30W (30W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：24V
• Voltage - Output 2：-24V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：625mA, 625mA
• Power (Watts)：30 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for RCD30-24D24W-A
