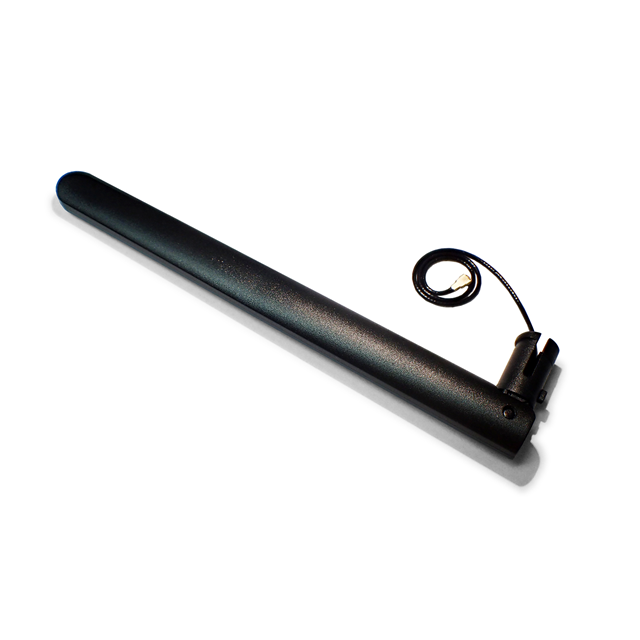

RFDPA131015IMBB301

$9.15

Description：RF ANT 863-928MHZ IPEX DIPOLE
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk

SKU:0feef0b8a5c0 Category: RF Antennas Brand: Walsin Technology Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RFDPA131015IMBB301 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Walsin Technology Corporation. Its product description is RF ANT 863-928MHZ IPEX DIPOLE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RFDPA131015IMBB301

Description：RF ANT 863-928MHZ IPEX DIPOLE
Series：-
Mfr：Walsin Technology Corporation
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：895.5MHz
Frequency Range：863MHz ~ 928MHz
Antenna Type：Whip, Tilt
Number of Bands：1
VSWR：2
Return Loss：-10dB
Gain：0.9dBi
Features：Cable - 150mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.024" (153.00mm)
Applications：GSM
Power - Max：-

Antennas RF datasheet and documents for RFDPA131015IMBB301

RFDPA131015IMBB301

Antennas RF Overview

The RFDPA131015IMBB301 is a GSM whip antenna manufactured by Walsin Technology Corporation. It operates within the frequency range of 863 to 928 MHz and features a 150mm dipole design. The component utilizes an I-PEX compatible connector for mounting, ensuring integration with standard RF interfaces.

Antennas RF Feature Summary

Dipole antenna structure optimized for GSM band operations
I-PEX compatible connector interface for secure mounting
150mm whip length for effective signal transmission

Antennas RF Applications

Mobile devices requiring GSM connectivity
Networking equipment operating in 863-928 MHz bands
Automotive telematics systems

Antennas RF Procurement Notes

Verify the specific I-PEX connector version compatibility with your host device's RF port before procurement. Confirm that the 150mm physical dimension fits within the enclosure constraints. Ensure the operating frequency range aligns strictly with local regulatory requirements for GSM applications. Cross-reference the datasheet revision to guarantee mechanical drawing accuracy.

Antennas RF Selection Notes

Select this model when a dedicated GSM whip antenna is required for 863-928 MHz coverage. The 150mm length provides a balance between performance and space efficiency. Choose this part if I-PEX mounting is specified over other connector types. Consider environmental factors affecting whip durability during selection.

Antennas RF Part Context

This component belongs to Walsin Technology Corporation's RF antenna portfolio, specifically designed for mobile and networking applications. It complements their broader range of passive components and RF filters. The product line focuses on reliable wireless connectivity solutions for consumer electronics and industrial modules.

Antennas RF Replacement Considerations

RFDPA131012IMLB301 is a documented variant from the same manufacturer series. Verify connector type and physical dimensions before substitution. Ensure frequency specifications remain identical to avoid performance degradation.
