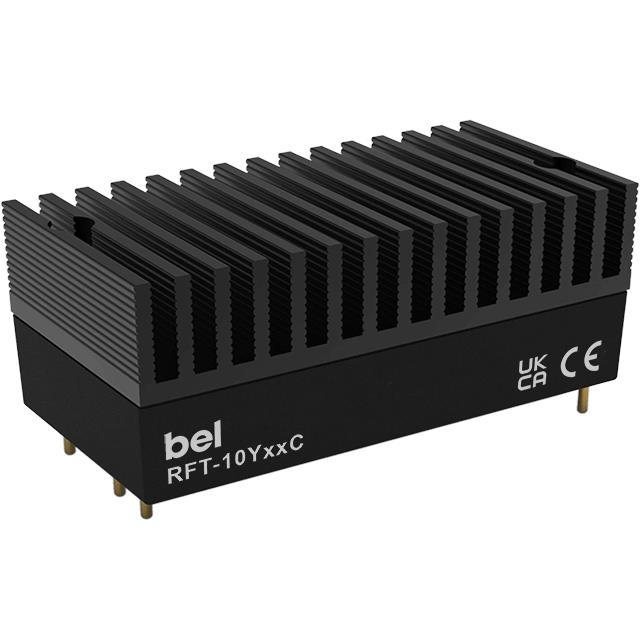

RFT-10Y48C

RFT-10Y48C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bel Power Solutions. Its product description is DC-DC,14-160V INPUT, 48V/0.21A O. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RFT-10Y48C

• Description：DC-DC,14-160V INPUT, 48V/0.21A O
• Series：RFT-10Y (10W)
• Mfr：Bel Power Solutions
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：14V
• Voltage - Input (Max)：160V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：208mA
• Power (Watts)：9.9 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Heat Sink
• Operating Temperature：-40°C ~ 105°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cCSAus, CE, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RFT-10Y48C
