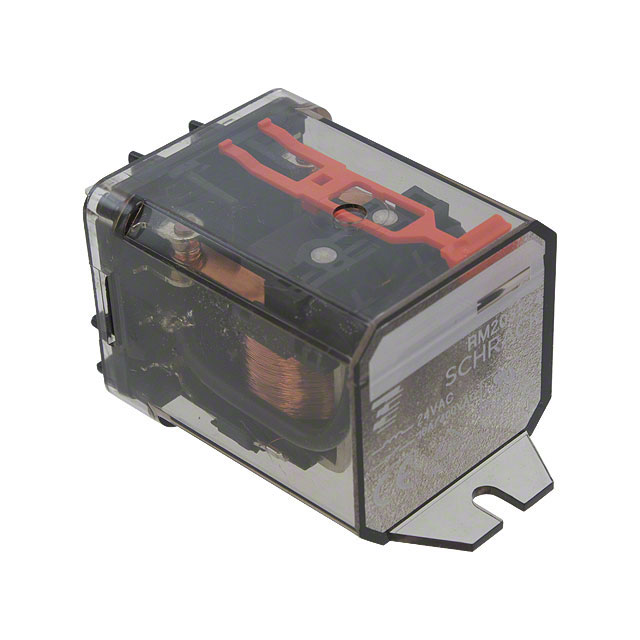

RM203110

RM203110 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPDT 16A 110V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RM203110

• Description：RELAY GEN PURPOSE DPDT 16A 110V
• Series：RM, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：110VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：440VAC - Max
• Load - Max Switching：7040VA
• Coil Current：10.9 mA
• Coil Type：Non Latching
• Features：Mechanical Indicator
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：82.5 VDC
• Must Release Voltage：11 VDC
• Operating Temperature：-45°C ~ 70°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms
