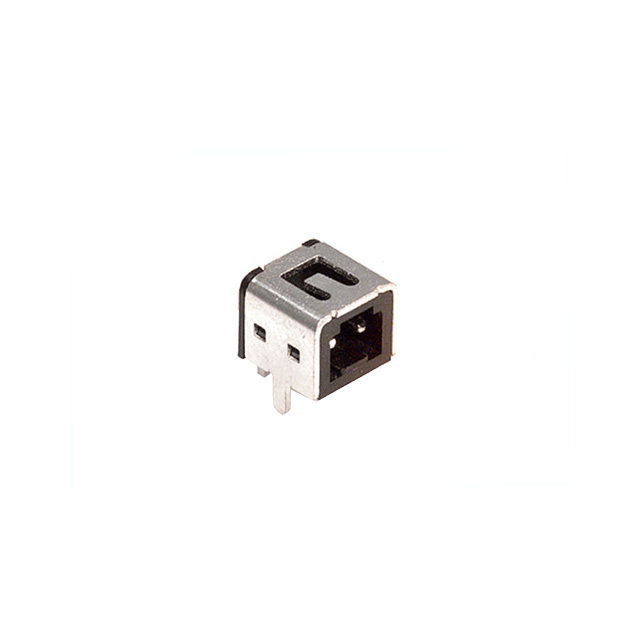

RP34L-5R-2PD(71)

RP34L-5R-2PD(71) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HEADER R/A 2POS 2.7MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for RP34L-5R-2PD(71)

• Description：CONN HEADER R/A 2POS 2.7MM
• Series：RP34L
• Mfr：Hirose Electric Co Ltd
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.106" (2.70mm)
• Number of Positions：2
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：-
• Contact Length - Post：0.098" (2.50mm)
• Overall Contact Length：-
• Insulation Height：0.240" (6.10mm)
• Contact Shape：Square
• Contact Finish - Mating：Palladium
• Contact Finish Thickness - Mating：39.4µin (1.00µm)
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Board Guide, Shielded
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：5A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for RP34L-5R-2PD(71)
