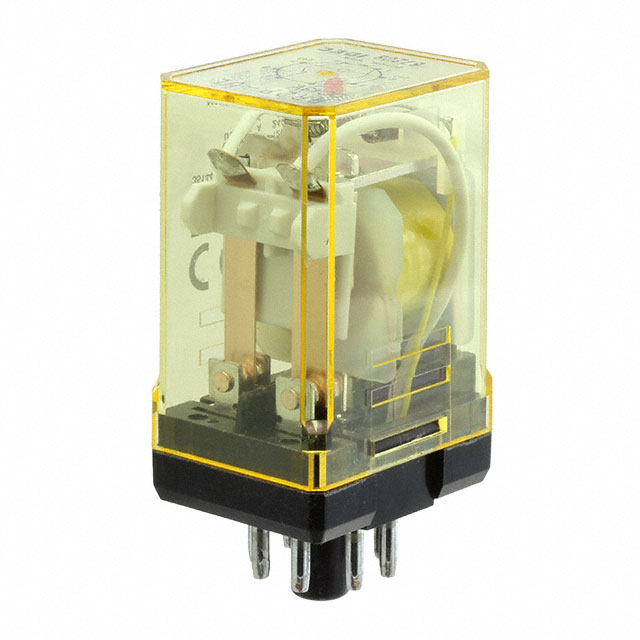

RR2P-UAC100V

RR2P-UAC100V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists IDEC. Its product description is RELAY GEN PURPOSE DPDT 10A 100V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RR2P-UAC100V

• Description：RELAY GEN PURPOSE DPDT 10A 100V
• Series：RR
• Mfr：IDEC
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：100VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：240VAC, 30VDC - Max
• Load - Max Switching：2400VA, 300W
• Coil Current：25 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In, 8 Pin (Octal)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：80 VAC
• Must Release Voltage：30 VAC
• Operating Temperature：-25°C ~ 40°C
• Contact Material：Silver (Ag)
• Approval Agency：CE, CSA, cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：25 ms
• Release Time：25 ms

Power Relays, Over 2 Amps datasheet and documents for RR2P-UAC100V
