RS2-20-G

Headers, Receptacles, Female Sockets Overview

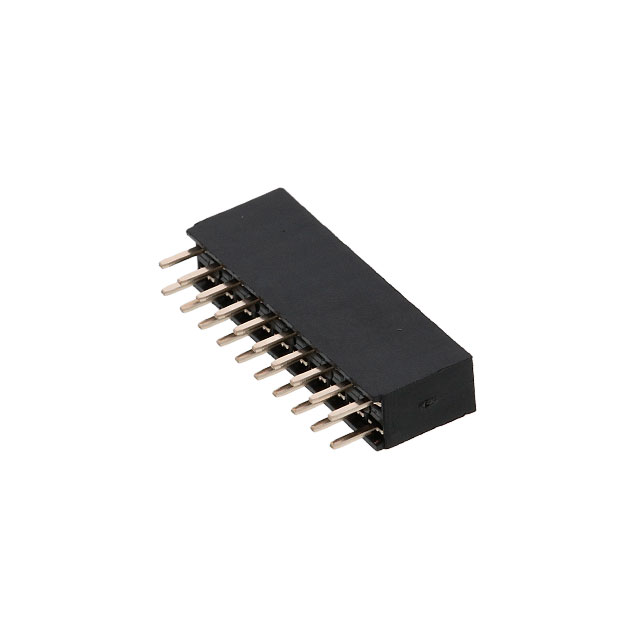

The RS2-20-G is a dual-row board connector receptacle manufactured by Adam Tech. It features 20 positions with a 2.54mm (0.1 inch) pitch and utilizes through-hole solder termination. The contacts are constructed from brass with flash gold plating, while the insulator is black. Designed for push-pull fastening, this component supports surface mounting on printed circuit boards.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row receptacle configuration with forked contact geometry
• Push-pull fastening mechanism for secure mating
• Through-hole solder termination for PCB integration

Headers, Receptacles, Female Sockets Applications

• General purpose board-to-board interconnects
• Electronic assembly requiring 0.100 inch spacing
• Industrial control panel wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches the Adam Tech part number RS2-20-G to ensure correct dual-row configuration and 2.54mm pitch. Confirm compatibility with mating header components before procurement. Check RoHS compliance status if required by project specifications. Ensure storage conditions maintain integrity of the flash gold plating and phosphor bronze or brass contacts as specified in official documentation.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a dual-row female socket with 20 positions is required. The 2.54mm pitch suits standard PCB layouts. Consider the push-pull locking feature for vibration resistance. Verify that the through-hole mounting type aligns with the manufacturing process. Ensure the operating temperature range meets system requirements.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the RS2 series of board connectors from Adam Tech. The series offers various position counts and row configurations. The RS2-20-G specifically provides a dual-row layout optimized for higher density connections compared to single-row alternatives within the same pitch family.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include models such as 2PH1R-20-UA from Adam Tech. Verify pin count and pitch alignment when substituting. Ensure mechanical dimensions match the existing PCB footprint.
