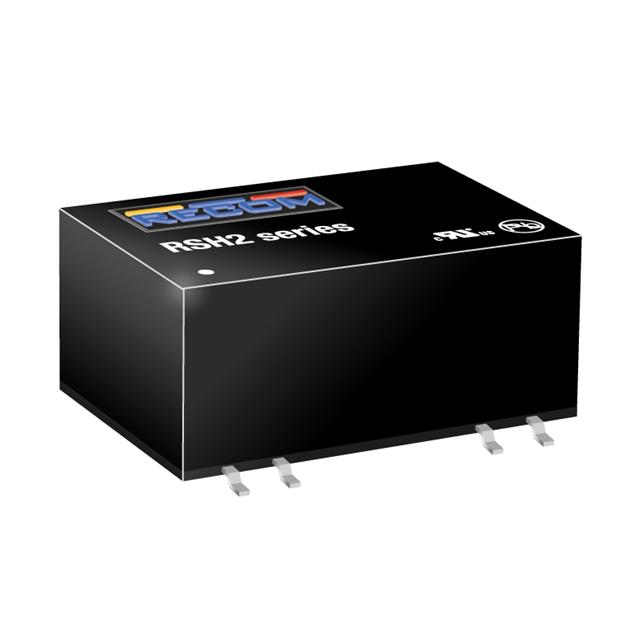

RSH2-3.312S/H2

RSH2-3.312S/H2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RSH2-3.312S/H2

• Description：DC DC CONVERTER 12V 2W
• Series：RSH2
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.8V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：167mA
• Power (Watts)：2 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：80%
• Mounting Type：Surface Mount
• Package / Case：14-SMD Module, 7 Leads
• Size / Dimension：0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RSH2-3.312S/H2
