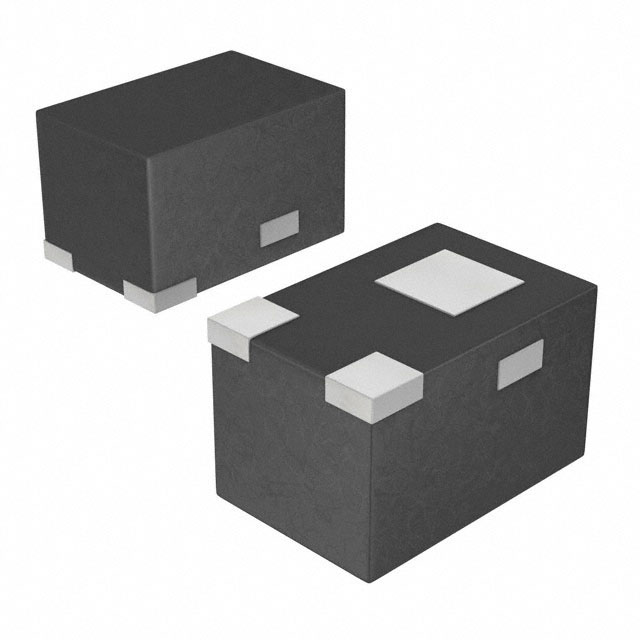

RV3CA01ZPT2CL

RV3CA01ZPT2CL is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is MOSFET P-CH 20V 100MA VML0604. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for RV3CA01ZPT2CL

• Description：MOSFET P-CH 20V 100MA VML0604
• Series：-
• Mfr：Rohm Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：P-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：20 V
• Current - Continuous Drain (Id) @ 25°C：100mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
• Rds On (Max) @ Id, Vgs：3.8Ohm @ 100mA, 4.5V
• Vgs(th) (Max) @ Id：1V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs：-
• Vgs (Max)：±10V
• Input Capacitance (Ciss) (Max) @ Vds：7.5 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：100mW (Ta)
• Operating Temperature：150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：VML0604
• Package / Case：3-XFDFN

Single FETs, MOSFETs datasheet and documents for RV3CA01ZPT2CL
