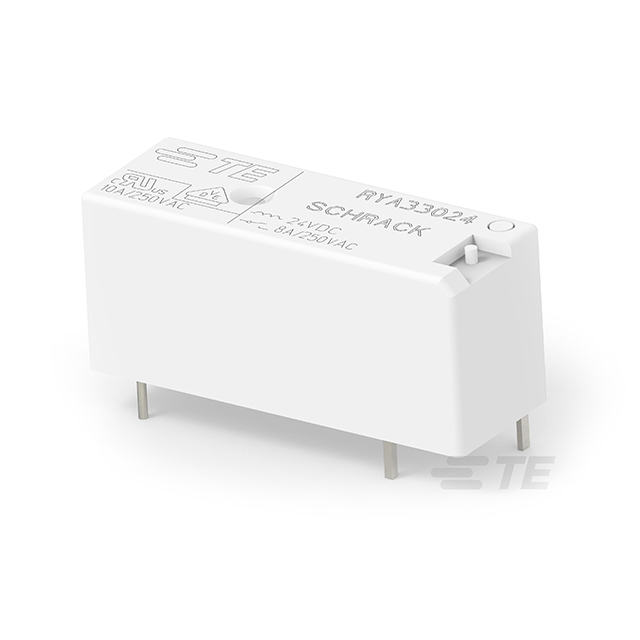

RYA33024

RYA33024 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 8A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RYA33024

• Description：RELAY GEN PURPOSE SPST 8A 24V
• Series：RY, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：8:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：3200VA
• Coil Current：10.2 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：9 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for RYA33024
