S2H048000F3CHC-T

Oscillators Overview

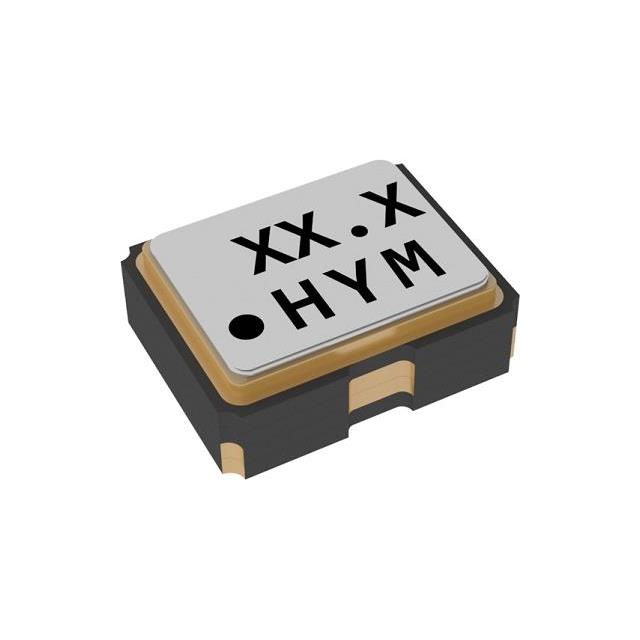

The S2H048000F3CHC-T is a surface-mount crystal oscillator manufactured by Harmony Electronics Corp. It operates at a nominal frequency of 48 MHz with a supply voltage of 3.3V. The device features an enable/disable interface and maintains a frequency stability of ±30ppm. It supports an operating temperature range from -30°C to +85°C. The component is housed in a compact 4-SMD, No Lead package and is supplied in tape and reel packaging. It is fully RoHS compliant and exhibits Moisture Sensitivity Level 1 characteristics.

Oscillators Feature Summary

• Provides stable 48 MHz timing signals for digital circuits
• Supports low-power operation with 3.3V supply voltage
• Includes enable/disable control functionality for power management
• Designed for industrial temperature ranges up to 85°C

Oscillators Applications

• Data communication systems
• Networking applications
• Consumer electronic devices
• Industrial control systems

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency tolerance and package type. Confirm that the enable/disable pin configuration aligns with the system design requirements. Ensure the 4-SMD footprint dimensions are compatible with the PCB layout. Check for RoHS compliance documentation if required by regulatory standards. Validate the moisture sensitivity level handling procedures during assembly.

Oscillators Selection Notes

Select this component when a precise 48 MHz clock source is required for embedded systems. Consider the ±30ppm stability specification for applications demanding moderate frequency accuracy. The wide operating temperature range makes it suitable for environments with thermal variations. The surface-mount package facilitates automated assembly processes. Evaluate the enable/disable feature necessity for power-sensitive designs.

Oscillators Part Context

This oscillator belongs to Harmony Electronics' HSO series of quartz frequency components. The manufacturer specializes in precision timing devices established since 1976. The product line targets diverse sectors including consumer electronics and industrial applications. Collaboration with Daishinku Corp enhances quality control processes. The component represents a standard solution for general-purpose clock generation needs.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 48 MHz oscillators only if electrical parameters match exactly. Verify pin compatibility and package dimensions before considering alternative sources.
