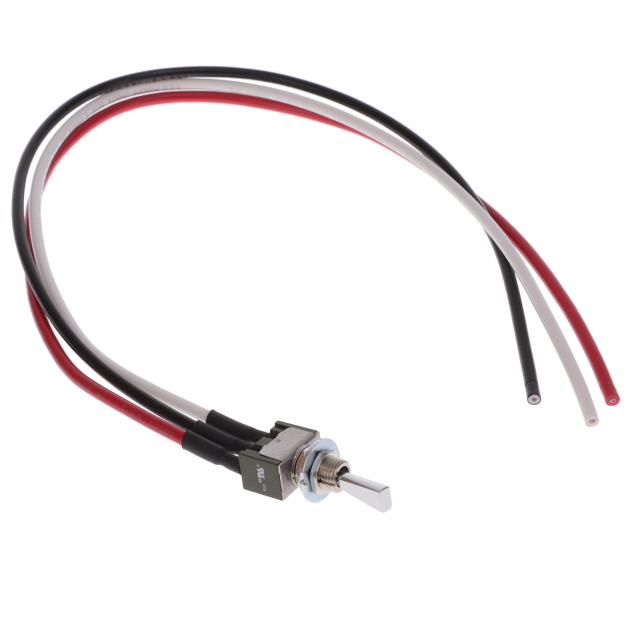

S8AW-WL

S8AW-WL is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SPDT 15A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for S8AW-WL

• Description：SWITCH TOGGLE SPDT 15A 125V
• Series：S
• Mfr：NKK Switches
• Package：Box
• Mounting Type：Panel Mount
• Circuit：SPDT
• Switch Function：Mom-Off-Mom
• Current Rating (Amps)：15A (AC), 20A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Standard Round
• Actuator Length：17.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Wire Leads
• Panel Cutout Dimensions：Circular - 12.50mm Dia
• Bushing Thread：M12 x 1
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-30°C ~ 70°C

Toggle Switches datasheet and documents for S8AW-WL
