SB1204WC01-RG

LED Indication - Discrete Overview

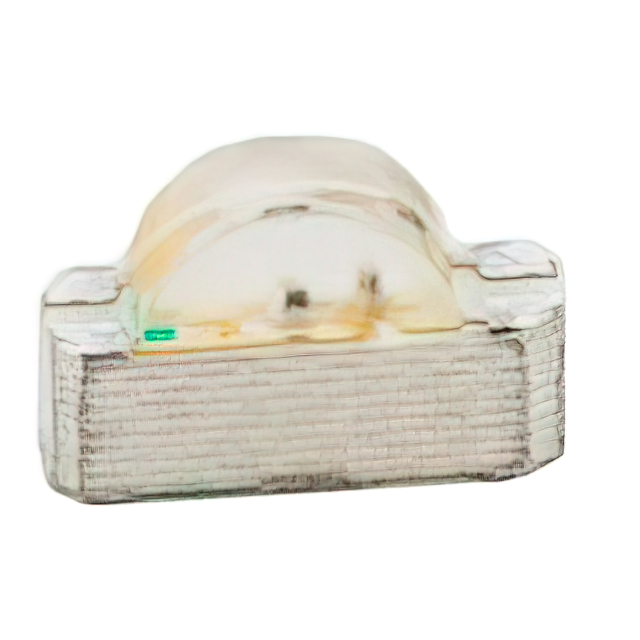

The SB1204WC01-RG is a bi-color surface-mount LED from Visual Communications Company - VCC, housed in a 1204 (3212 metric) package. It emits red light at 635 nm and green light at 570 nm with a 120-degree viewing angle. The component features a colorless, water-clear round lens and measures 3 mm in length, 2 mm in width, and 2.1 mm in height. The forward voltage is specified as 2 V.

LED Indication - Discrete Feature Summary

• Dual-color emission capability combining red and green wavelengths within a single compact SMD footprint.
• High brightness output optimized for clear visual indication in space-constrained designs.
• Water-clear round lens provides wide 120-degree visibility and consistent light distribution.

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Multi-state signaling in consumer devices
• Panel indicators requiring distinct color coding

LED Indication - Discrete Procurement Notes

Verify the specific manufacturer part number against official Visual Communications Company documentation to confirm current availability status and RoHS compliance details. Ensure that the 1204 package dimensions align with your PCB footprint requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when dual-color functionality is required in a minimal surface-mount area. The 1204 package size offers a balance between visibility and board space efficiency. Confirm that the 2 V forward voltage rating matches your circuit design constraints for both red and green channels.

LED Indication - Discrete Part Context

This bi-color LED belongs to the VCC SMD indicator series, designed for high-brightness applications. The 1204 form factor is standard for surface-mount assembly, allowing automated placement. It serves as a compact solution for devices needing multiple status colors without increasing board real estate.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official VCC resources for potential equivalent components if this specific model is unavailable.
