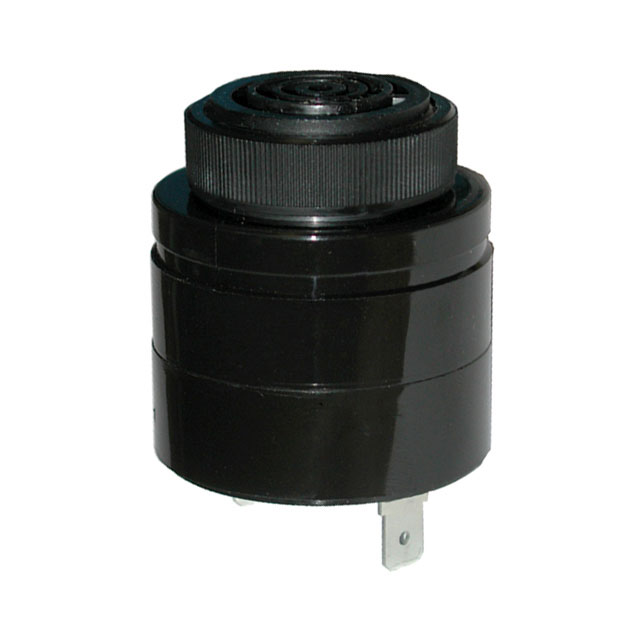

SC2036CPR

$34.90

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:3073a2102bb0 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：1kHz
Technology：Piezo
Operating Mode：Chime
Duration：-
Sound Pressure Level (SPL)：68dB @ 20V, 61cm
Current - Supply：12 ~ 25mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Panel Mount
Termination：Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Height - Seated (Max)：1.946" (49.43mm)
Voltage Range：20 ~ 36V
Size / Dimension：1.687" Dia (42.85mm)

Download product information

SC2036CPR

Overview

The SC2036CPR is a piezoelectric buzzer from the SC series by Mallory Sonalert Products Inc. It features internal drive circuitry and operates on DC input within a voltage range of 20 to 36V. The device produces a harmonic tone at a frequency of 1kHz with a sound pressure level of 68dB measured at 20V and 61cm distance. Power consumption ranges from 12 to 25mA. It utilizes panel mounting with a diameter of 42.85mm (1.687 inches) and a maximum height of 49.43mm (1.946 inches). Electrical connections are provided via screw terminals and quick-connect tabs measuring 0.250 inches (6.35mm). The unit is rated for operation between -30°C and 65°C.

Feature Summary

Integrates internal drive circuitry for simplified system integration without external oscillators.
Employs piezoelectric technology to generate a consistent harmonic acoustic signal.
Supports dual termination methods including screw terminals and standard quick-connect tabs.

Applications

Industrial machinery status indication
Control panel alarm signaling
Equipment fault detection systems

Procurement Notes

Verify that the operating voltage remains within the specified 20 to 36V DC range to ensure proper function. Confirm that the required sound pressure level of 68dB meets the environmental noise requirements of the installation site. Ensure the mounting hole diameter accommodates the 42.85mm body size and that the enclosure allows for the 49.43mm maximum height clearance.

Selection Notes

Select this component when a self-contained, internally driven piezoelectric indicator is required for high-voltage DC applications. The SC2036CPR is suitable for designs needing robust panel mounting with versatile terminal options. Consider the specific harmonic frequency and decibel output against ambient noise levels before finalizing the design.

Part Context

This part belongs to the SC series of industrial alarms and audio indicators manufactured by Mallory Sonalert Products Inc. The series is characterized by rugged construction and reliable performance in demanding environments. The SC2036CPR specifically represents a circular, panel-mount variant designed for direct integration into control panels and enclosures.
