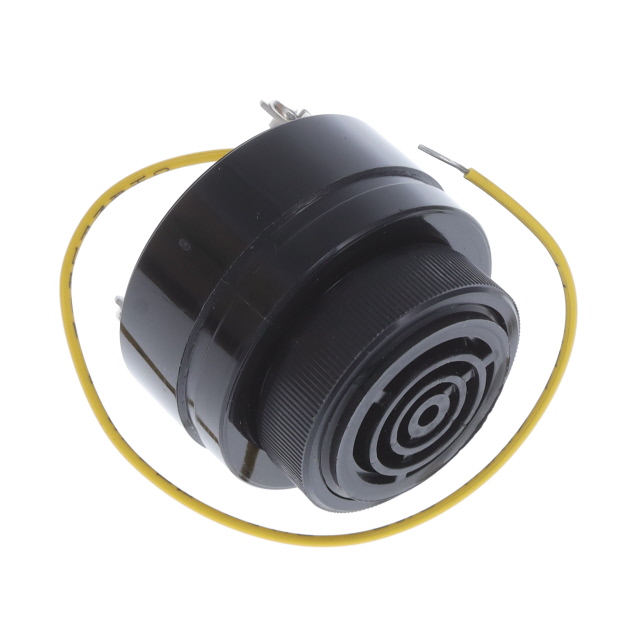

SC616NPUR

$46.44

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:2dce3886a1b3 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC616NPUR is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 42.85MM PNL MNT. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for SC616NPUR

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：2.9kHz
Technology：Piezo
Operating Mode：Pin Selectable
Duration：-
Sound Pressure Level (SPL)：80dB @ 6V, 61cm
Current - Supply：30mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Panel Mount
Termination：Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Height - Seated (Max)：1.399" (35.54mm)
Voltage Range：6 ~ 16V
Size / Dimension：1.687" Dia (42.85mm)

Alarms, Buzzers, And Sirens datasheet and documents for SC616NPUR

SC616NPUR

Alarms, Buzzers, And Sirens Overview

The SC616NPUR is an industrial-grade piezoelectric buzzer from the Mallory Sonalert SC series. It operates on a DC voltage range of 6 to 16V with a rated voltage of 16V. The device draws a current of 26 mA and produces a continuous tone at a frequency of 2.9 kHz. It achieves a sound pressure level of 90 dBA. The unit features screw terminals for connection and is designed for panel mounting. Its physical dimensions include a diameter of 43 mm.

Alarms, Buzzers, And Sirens Feature Summary

Industrial-grade construction suitable for demanding environments
Piezoelectric transducer technology for reliable audio indication
Internal driver circuitry for direct voltage application

Alarms, Buzzers, And Sirens Applications

Industrial machinery status indication
Equipment fault alarm systems
Control panel audio alerts

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific suffix against official Mallory Sonalert documentation to confirm terminal type and acoustic characteristics. Ensure the operating voltage aligns with the 6-16VDC specification. Confirm RoHS compliance status as indicated in the manufacturer's datasheet before procurement.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a high-volume, low-cost industrial buzzer is required. Compare with variants like SC616N-BTR if flat blade terminals are preferred over screw connections. Consider the LSC616N series if integrated LED indication is necessary alongside the audio alert function.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the SC series of classic Sonalert devices manufactured by Mallory Sonalert Products Inc. These devices are widely used in industrial applications requiring robust audio signaling. The series is known for its reliability and standardized form factors compatible with various panel mount configurations.
