SDE5-D10-FP-Q4E-P-M8

Pressure Sensors Transducers Overview

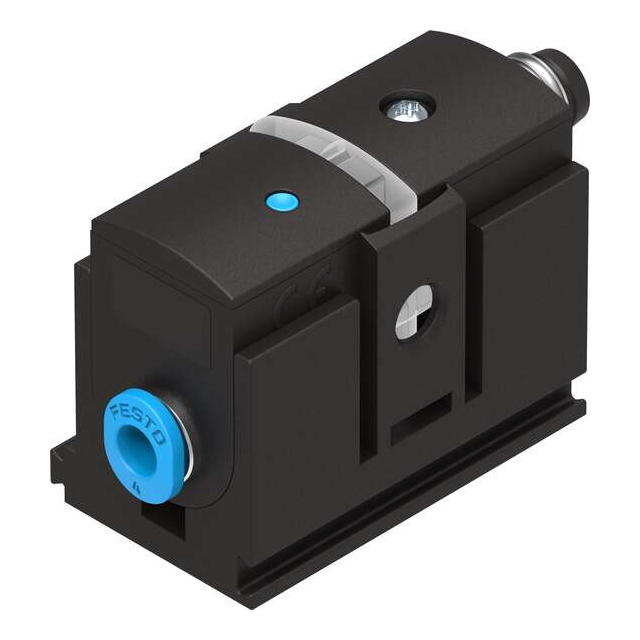

The Festo SDE5-D10-FP-Q4E-P-M8 is a relative pressure sensor from the SDE5 series designed for pneumatic applications. It features a measuring range of -1 to 10 bar (vacuum and positive pressure). The device provides a PNP switching output and a 4-20 mA analog signal. It utilizes an M8 male connector for electrical interfacing and employs push-in connection threads for pneumatic input. The unit supports direct plug-in installation with dimensions of 16mm width, 41.5mm depth, and 24.5mm height. It operates within a temperature range up to 50°C and holds RCM, cULus, and OL certifications.

Pressure Sensors Transducers Feature Summary

• Combines digital switching and analog current signaling in a single compact module
• Capable of detecting both vacuum levels and positive pneumatic pressure
• Utilizes standardized M8 male connectors for straightforward electrical integration
• Supports rapid push-in pneumatic connections for simplified system assembly

Pressure Sensors Transducers Applications

• Monitoring pressure states in automated pneumatic control circuits
• Integrating into modular automation stations requiring dual signal outputs
• Vacuum generation and holding pressure verification tasks
• Industrial machinery safety interlocks based on pressure thresholds

Pressure Sensors Transducers Procurement Notes

Verify that the specific suffix codes match the required voltage polarity and cable length specifications. Confirm the operating environment temperature does not exceed the rated maximum of 50°C. Ensure the pneumatic medium is compatible with the sensor materials. Cross-reference the certification marks against local regulatory requirements for industrial equipment deployment.

Pressure Sensors Transducers Selection Notes

Select this model when both discrete switching logic and continuous analog monitoring are required simultaneously. The M8 interface suits space-constrained panels where standard connectors are preferred. The push-in thread design reduces assembly time compared to threaded fittings. Consider the 4-20 mA range for precise pressure trending rather than simple on/off detection.

Pressure Sensors Transducers Part Context

This component belongs to the Festo SDE5 series, which focuses on compact pressure sensing solutions for modern pneumatic systems. The series emphasizes modularity and ease of integration into existing control architectures. The SDE5 line typically offers various output configurations and connection types to suit diverse application needs.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes include the SDE5-D10-O-Q4E-P-M8 for open-collector output variants or the SDE5-D10-FP-Q6E-P-M8 for enhanced switching capabilities. Verify pinout compatibility when swapping between different output types within the same series.
