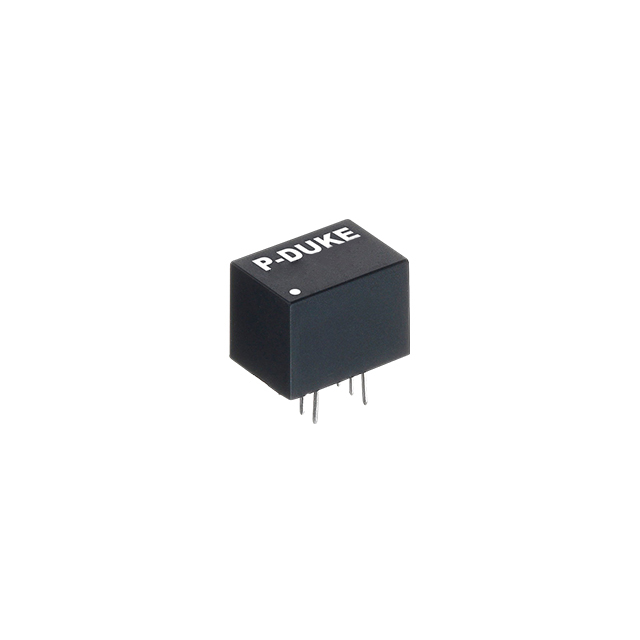

SDH05-05S12

SDH05-05S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 12V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SDH05-05S12

• Description：DC DC CONVERTER 12V 5W
• Series：SDH05 (5W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：420mA
• Power (Watts)：5 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 6 Leads
• Size / Dimension：0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：62368-1

DC DC Converters datasheet and documents for SDH05-05S12
