SE20ND-M3/I

$0.34

Description：DIODE STANDARD 200V 2A DFN3820A
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9ea4095859d5 Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SE20ND-M3/I is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE STANDARD 200V 2A DFN3820A. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for SE20ND-M3/I

Description：DIODE STANDARD 200V 2A DFN3820A
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：2A
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 2 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：1.2 µs
Current - Reverse Leakage @ Vr：5 µA @ 200 V
Capacitance @ Vr, F：12pF @ 4V, 1MHz
Mounting Type：Surface Mount, Wettable Flank
Package / Case：2-VDFN
Supplier Device Package：DFN3820A
Operating Temperature - Junction：-55°C ~ 175°C
Grade：Automotive
Qualification：AEC-Q101

Single Diodes datasheet and documents for SE20ND-M3/I

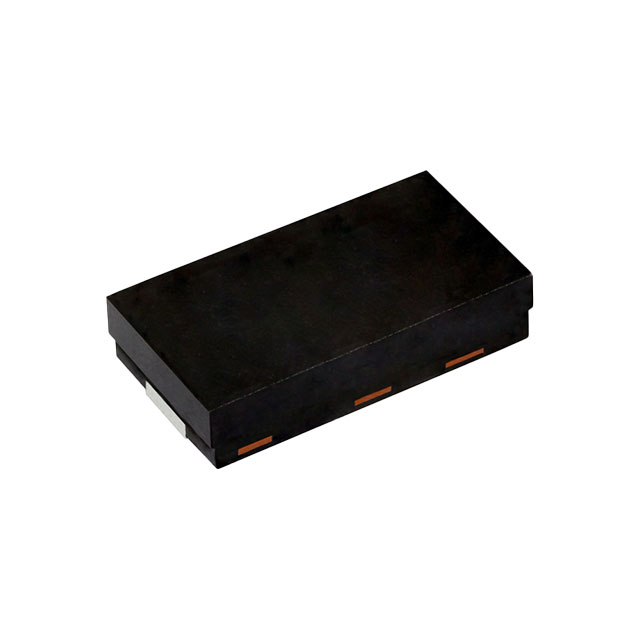

SE20ND-M3/I

Single Diodes Overview

The SE20ND-M3/I is a general-purpose rectifier diode manufactured by Vishay General Semiconductor - Diodes Division. It features a maximum repetitive peak reverse voltage of 200 V and an average forward rectified current of 2 A. The device utilizes a DFN3820A surface-mount package with wettable flank technology to ensure reliable solder joint inspection. It operates within a junction temperature range of -55°C to +175°C.

Single Diodes Feature Summary

Wettable flank technology for enhanced visual inspection of solder joints
General-purpose rectification capability
Surface-mount design in a compact footprint

Single Diodes Applications

Power supply circuits
General electronic equipment rectification

Single Diodes Procurement Notes

Verify the specific suffix /I against the official datasheet to confirm lead-free status and RoHS compliance details. Ensure the DFN3820A package dimensions match your PCB layout requirements. Confirm availability through authorized distributors as stock levels fluctuate.

Single Diodes Selection Notes

Select this component when a 200V, 2A standard recovery diode is required in a small surface-mount form factor. The wettable flank feature is critical for applications demanding high reliability and automated optical inspection capabilities. Compare thermal performance against alternative packages if heat dissipation is a primary constraint.

Single Diodes Part Context

This part belongs to Vishay's general-purpose rectifier lineup, designed for broad industrial and consumer electronics applications. The DFN3820A package offers a low-profile solution suitable for space-constrained designs while maintaining robust electrical characteristics typical of the manufacturer's standard recovery diode series.

Single Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical ratings before considering any generic equivalents.
