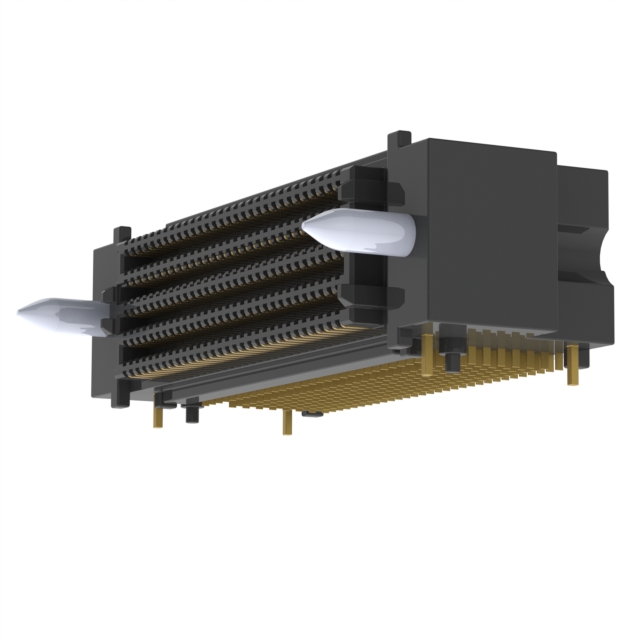

SEAM-30-01-S-10-2-RA-GP-K-TR

SEAM-30-01-S-10-2-RA-GP-K-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HD ARRAY PLUG 300P R/A SMD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for SEAM-30-01-S-10-2-RA-GP-K-TR

• Description：CONN HD ARRAY PLUG 300P R/A SMD
• Series：SEARAY™ SEAM
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：High Density Array, Male
• Number of Positions：300
• Pitch：0.050" (1.27mm)
• Number of Rows：10
• Mounting Type：Surface Mount, Right Angle
• Features：Board Guide, Mating Flange, Pick and Place
• Contact Finish：Gold
• Contact Finish Thickness：30.0µin (0.76µm)
• Mated Stacking Heights：-
• Height Above Board：0.511" (12.99mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for SEAM-30-01-S-10-2-RA-GP-K-TR
